Description

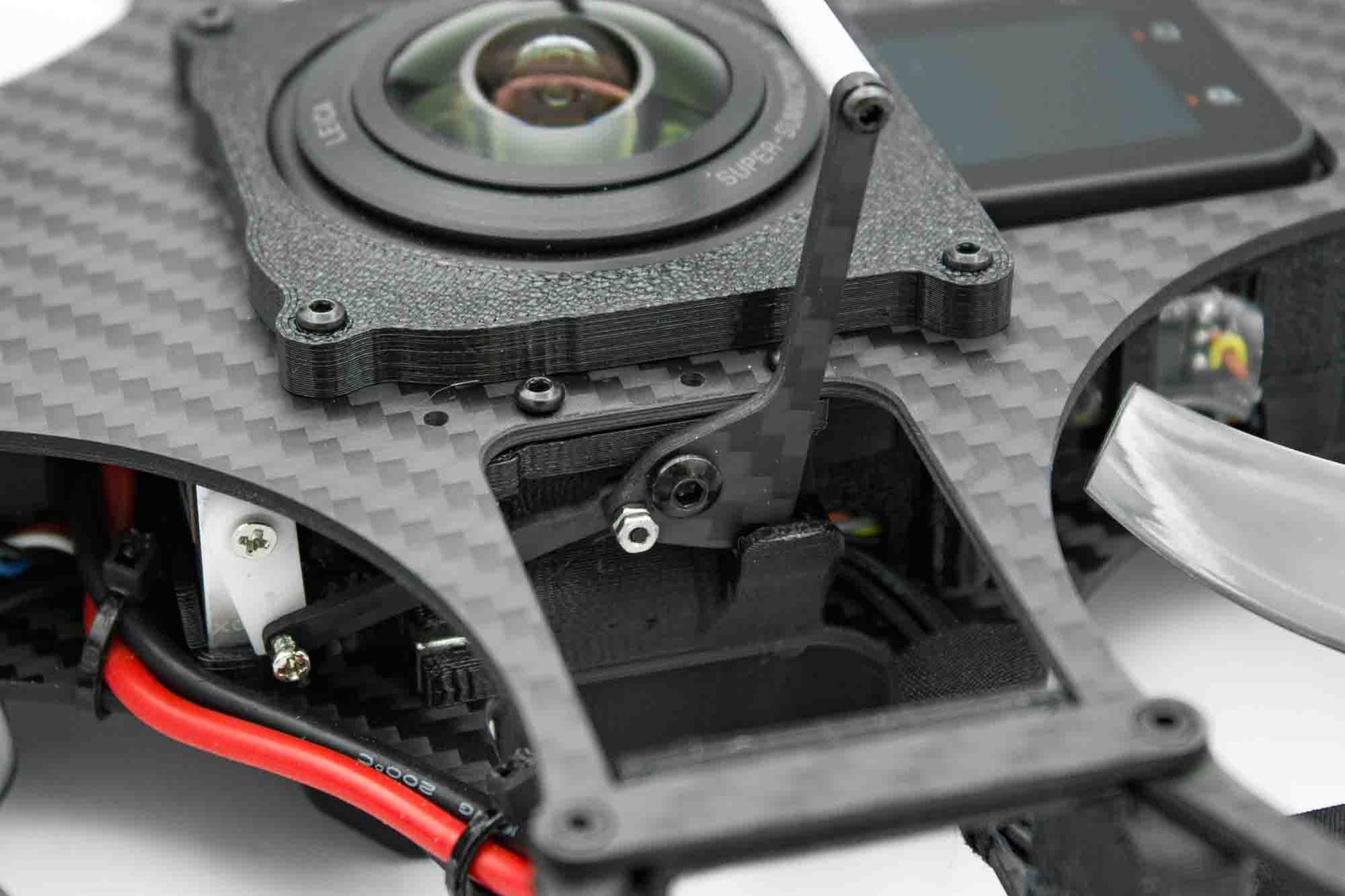

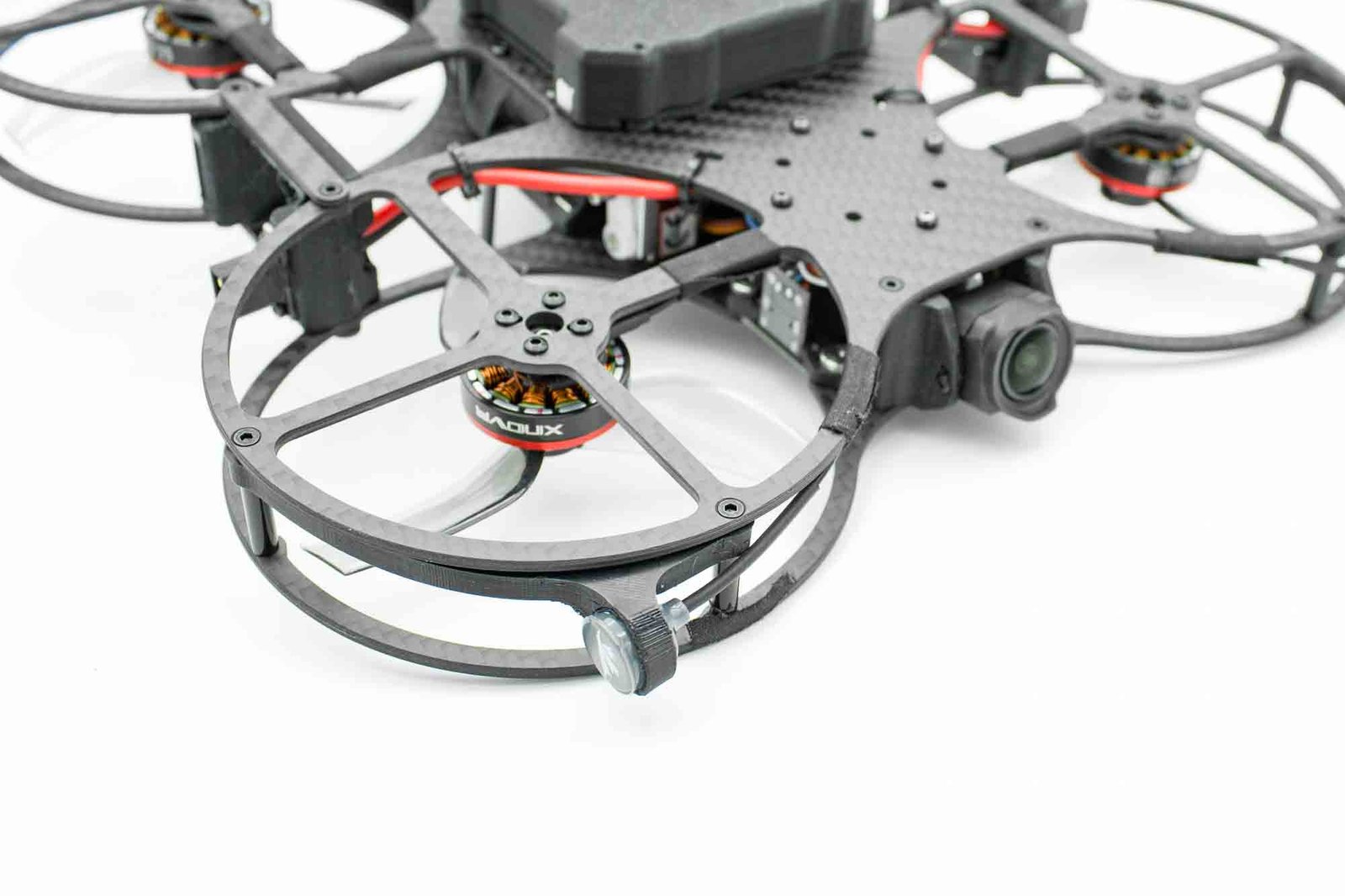

Protect your Lens
Our unique retractable landing gear serves to safeguard the lens from scratches. It is robust and dependable, surpassing anything previously observed. Nevertheless, it is not designed for crash protection. A magnetic cover for top and bottom side additionally protects the lens during transport.
Balance is Key
one – touch record
Accessing the camera buttons is effortless with the 3D-printed mount. Simply press the record button to awaken the camera.
Binding made easy
Binding the Crossfire Nano RX receiver has never been easier thanks to direct access to its bind button.
Solid pit stop speed
Swapping batteries is made easy with the built-in AMASS XT30 connector, offering additional convenience. For optimal performance, we recommend using 2x Bonka 4s 650 mAh 75C LiPos.
Mechanical Endstop
Antenna positioning

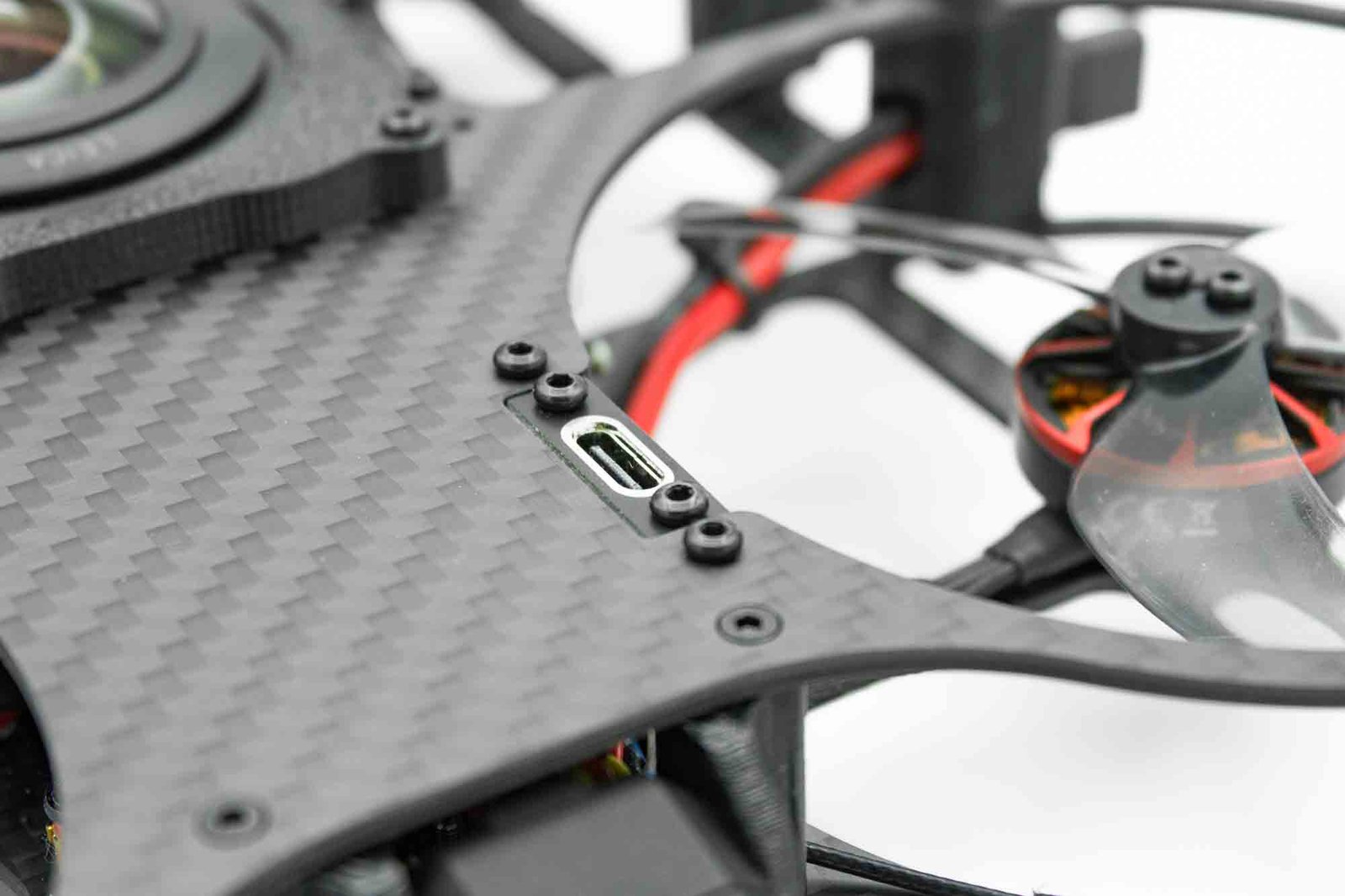

USB Accessibility
Adapting rates, accessing the flight log and changing settings is easy to do with the extended USB port for the flight controller.
SD Card access
Accessing the SD card and of the Insta360 camera is easiest at the rear of the frame. An SD card extension allows smooth SD card removal and the removable cover protects the SD during flight.
Premium components
Rather than depending on a single brand for all components, we opted for the most efficient and reliable elements available in the market for this build. Each drone undergoes an extensive in-house quality and performance check before shipment, ensuring the highest possible reliability.

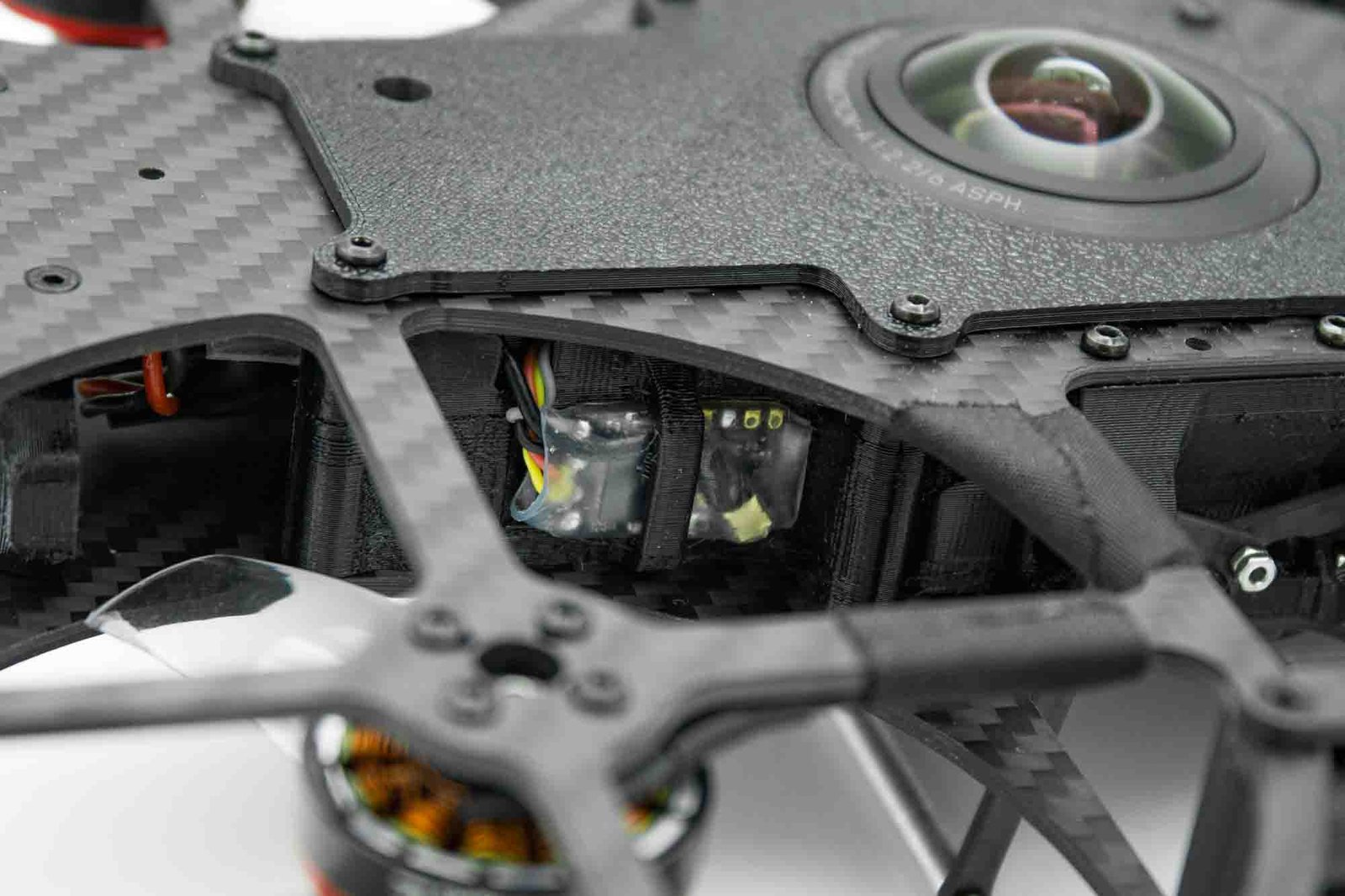

Conformal coating
We apply conformal coating to the electronics of our BNFs, including the flight controller, ESC, receiver, and GPS during assembly. However, to prevent overheating issues, our standard process excludes coating the O3 air unit and O3 camera.
3.5″ 360 Drone
Each BNF Drone is hand built, tested and tuned here in Switzerland. Please be informed this takes time – we need roughly 3 weeks to prepare your BNF.
Top Specs
Top features
– DJI Air Unit O3 Videolink
– Optimized for carrying Insta360 one RS 1 INCH
– 4S LiPo power
– 3.5″ Propellers
– 2 mm cfk thickness
– XNOVA 2204 2900KV motors
– JHEMCU GHF745 AIO
– TBS Crossfire Nano RX
– 2x Matek 5V 2ABEC for Servo and Camera power
– TrueRC singularity antennas
– recommended Battery type: 4s 650 mAh Bonka
– conformal coating
– specific tune
– preconfigured PID profile
– preconfigured OSD
– preconfigured telemetry
– test flight performed on every drone
Kit includes
– BNF 360 Drone
– 2 pairs of 3.5″ propellers
– optional: Case
– No Insta360 camera included!
