Description

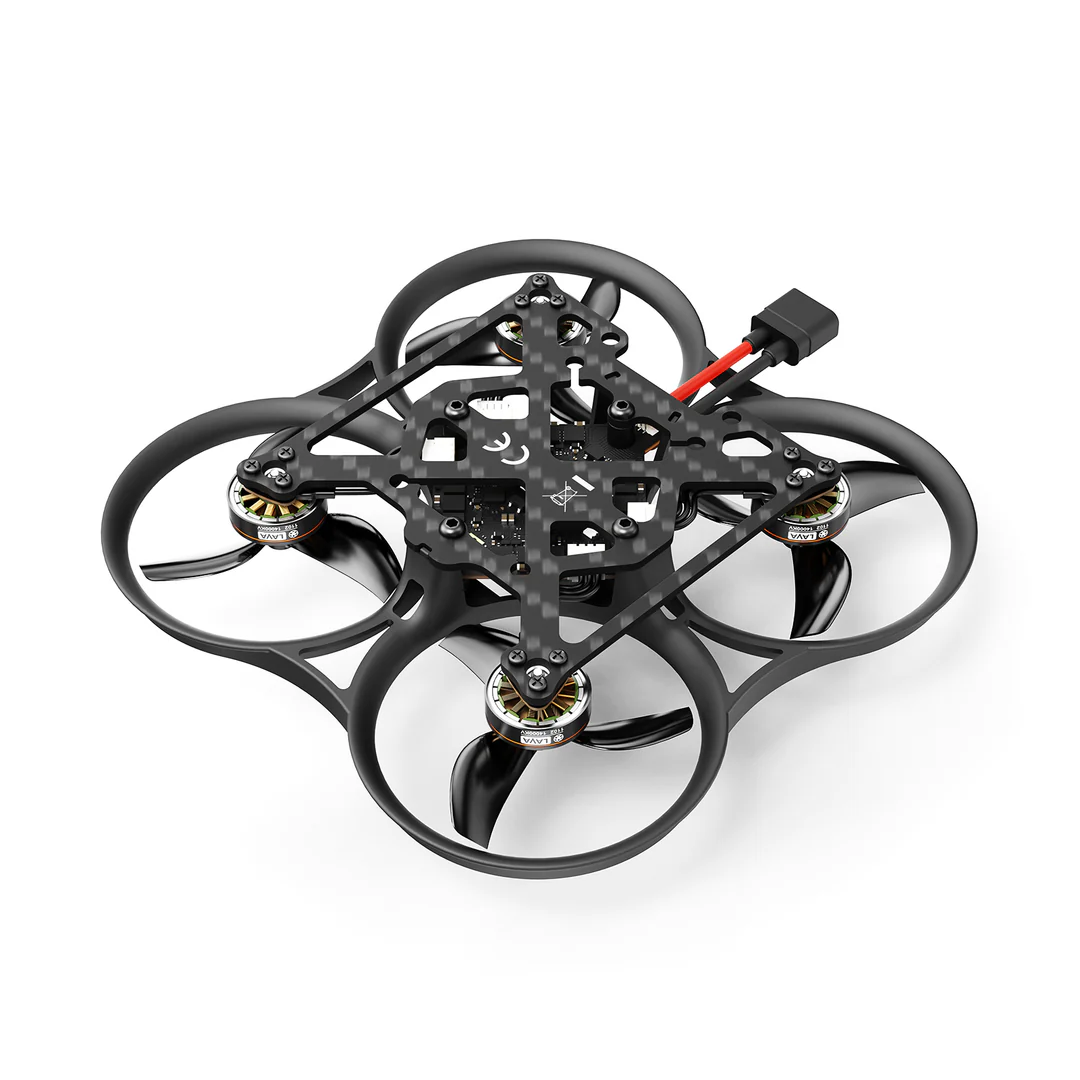

The next-generation Pavo Pico II is the ultimate compact cinewhoop, completely redesigned for the DJI O4 system. It features a new rigid frame with guided mounting for easy assembly, the innovative O4 Bracket II with 4 shock absorbers to eliminate jello, and a new carbon plate that fits both the O4 and O4 Pro air units. Powered by upgraded LAVA 1102 motors for 10% more power and efficiency, all in a lightweight 53.7g design, it delivers stunning, smooth 4K footage wherever you fly. Maximum Performance, Minimal Size.
Specifications
- Items: Pavo Pico II Brushless Whoop Quadcopter
- Color: Black
- Wheelbase: 80mm
- Frame: Pavo Pico II Brushless Whoop Frame

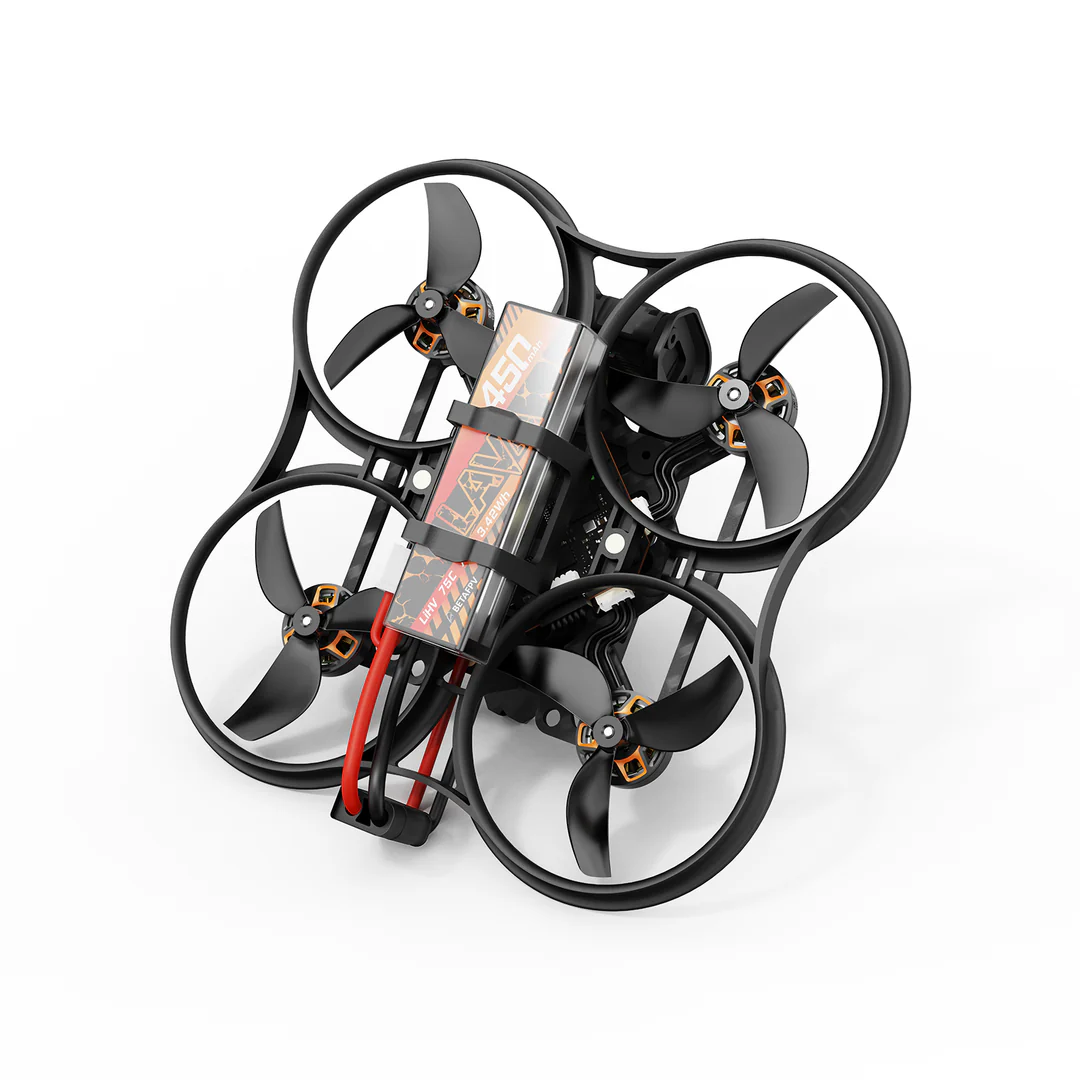

- Battery: LAVA 2S 550mAh
- FC: F4 2-3S 20A AIO FC
- Props: GF 45mm 3B Prop
- Motor: LAVA 1102 / 14000kv
- Battery Connector: XT30
- Battery Slot: 16*12.7mm
- Flight Time: 6:30 min (O4 Version with LAVA 2S 550mAh battery)

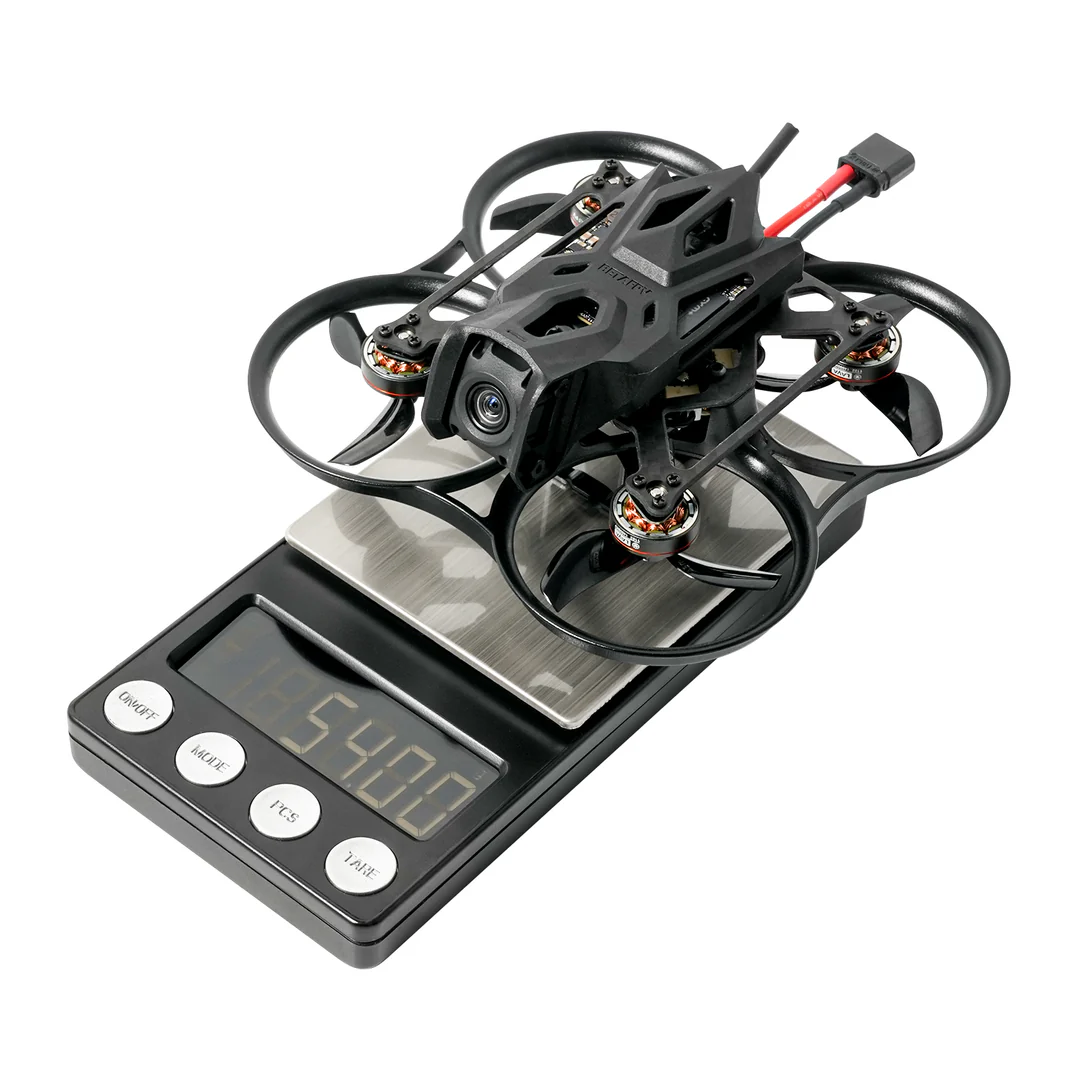

- Weight: 39.1g (PNP Version), 53.7g (O4 Version)
- RX Version: Serial ELRS, DJI SBUS
The newly designed carbon plate seamlessly integrates both the DJI O4 and O4 Pro, future-proofing your build and empowering you to capture stunning HD footage without compromise. With pre-tuned PID parameters optimized for both O4 systems, achieving peak performance is effortless—simply select your configuration via the OSD and fly with confidence.
Flight Controller
The Pavo Pico II features an F4 2-3S 20A AIO Flight Controller specifically designed for HD VTX. Equipped with a dual BEC solution, it provides stable power outputs of 9V 2A for the DJI O4 system and 5V 3A for external devices. The 20A ESC ensures agile and dynamic flight performance, while dedicated HD VTX 6-Pin connectors and a conveniently positioned USB ports simplify installation and maintenance. This FC brings exceptional reliability and professional-grade functionality for Pavo Pico II.
Powerful Propulsion System
Experience a leap in performance with the all-new LAVA 1102 14000KV motors and custom-engineered Gemfan 45mm 3 blade props. This optimized combination delivers a massive 10% increase in propulsion for explosive acceleration, while also achieving remarkable efficiency for extended flight times up to 6:30 minutes.
