Clean Gyro Log
With the advances in PID tuning with Brian white’s great PIDToolbox, blackbox logging became vastly more popular for PID tuning and frame review. We proudly present this plot depicting the frequency distribution on our KinomatiX 11 BNF. Very low noise in general and no spikes in the important region of below 100hz can be observed. The log represents a 2 and 1/2 minutes flight with some punches, flips and cruising including payload.
Bye Bye Softmount
Softmounting your camera with Alphagel or silicone dampeners is over! With increased stiffness in our massive camera mount and frame body, resonances are shifted out of troubling frequencies regions towards higher, less critical (easily filterable) frequencies. The result? No annoying spikes in sub 100hz region, super clean footage guaranteed.

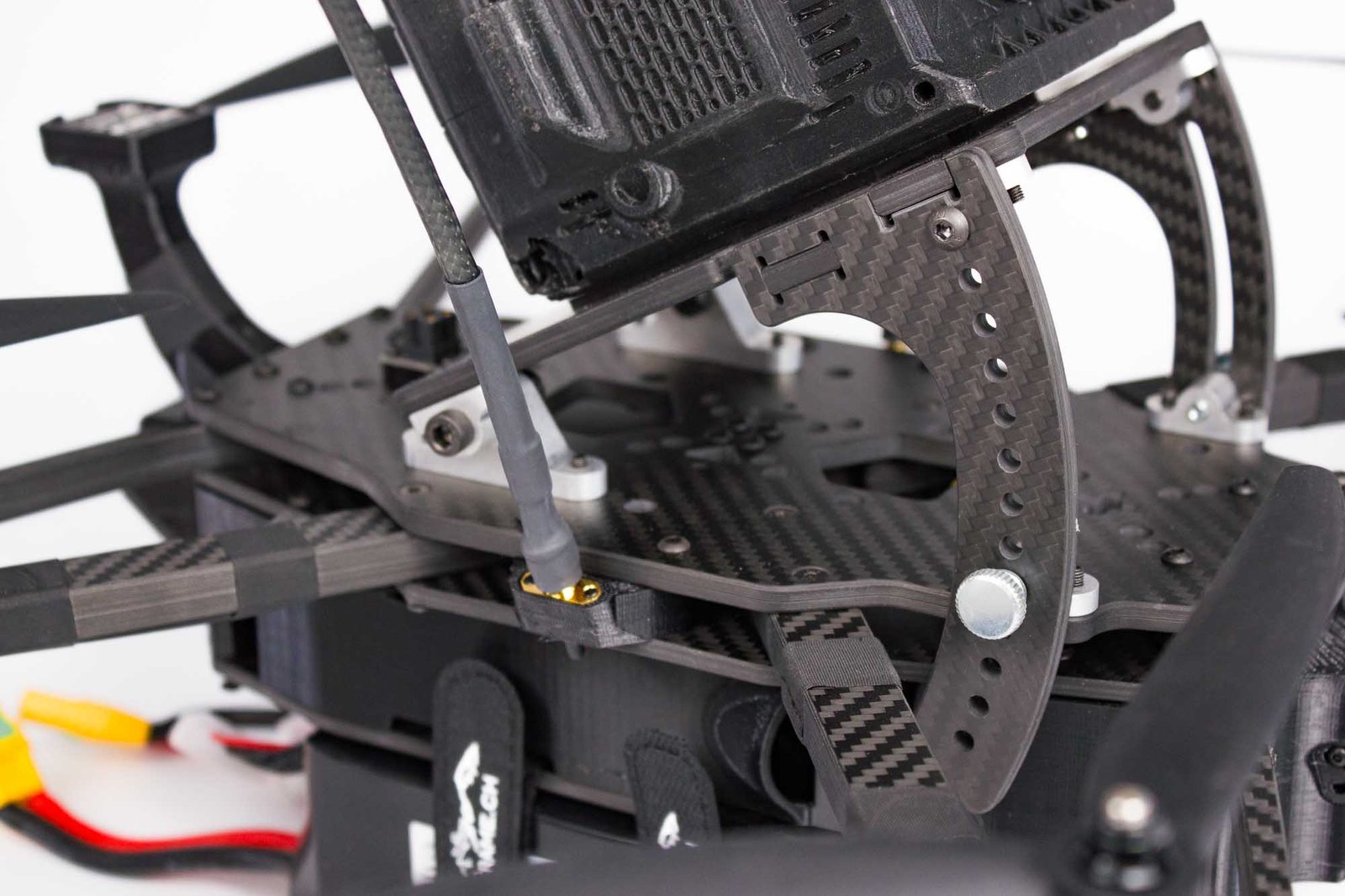

Adjustable Camera Mount
The camera mount is designed to firmly hold even the heaviest of cinelifter cameras and allows a wide range of camera angles, easily adaptable with M4 thumb screws.
Aerodynamic Layout
thin, braced Arms reduce overall drag coefficient and allows this drone to reach speeds of more than 200 km/h (red Komodo)! As opposed to other cinelifters in this class, all electronics are hidden inside the body for protection and a clean look.
Protective Shell
The outer shell shields the electronics from dust and other particles. Active and passive cooling make sure the Air unit doesn’t overheat even during extended periods of standing still.

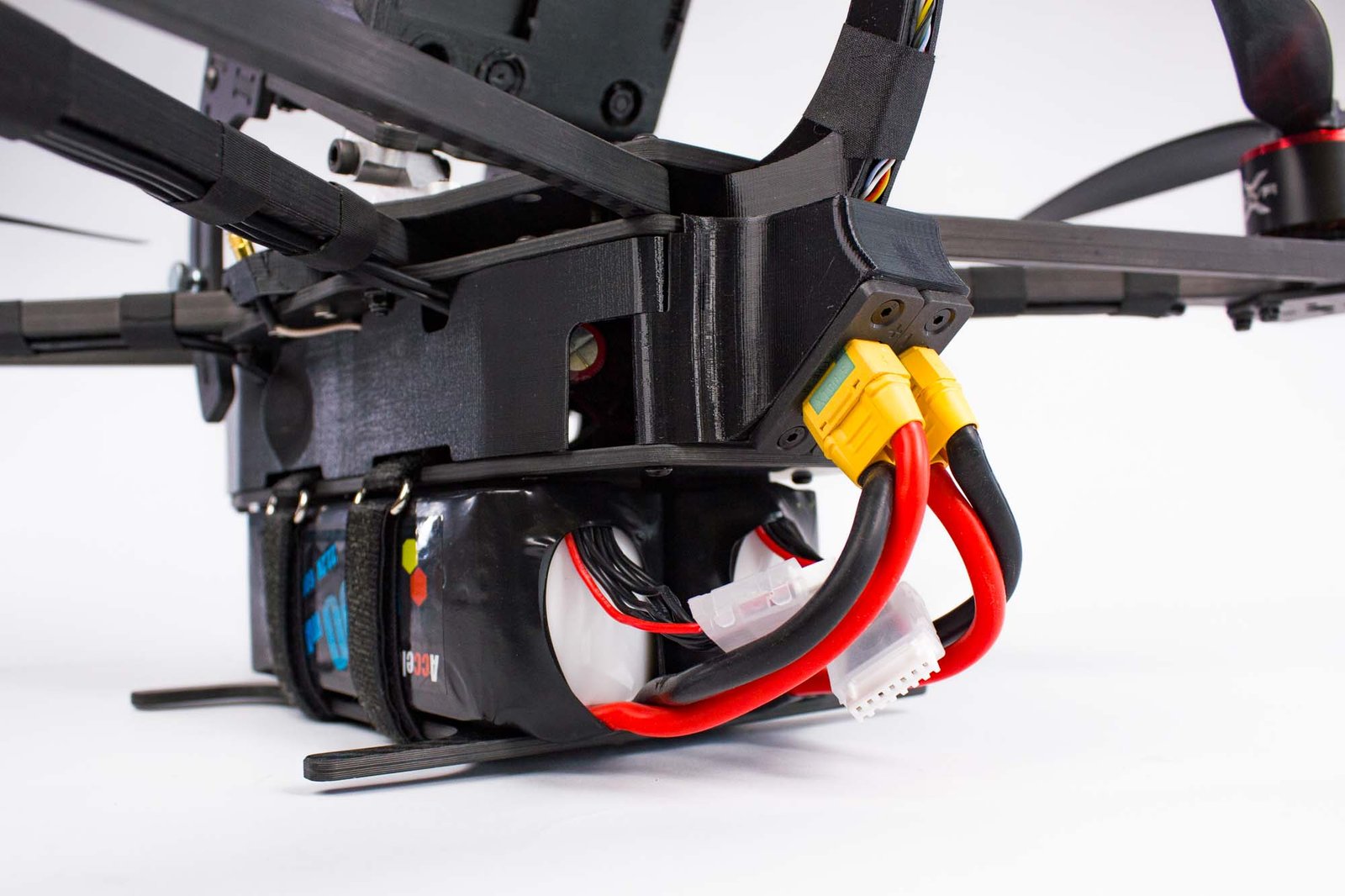

XT90 / AS150
The firmly integrated power plug allows hassle free Lipo changing.

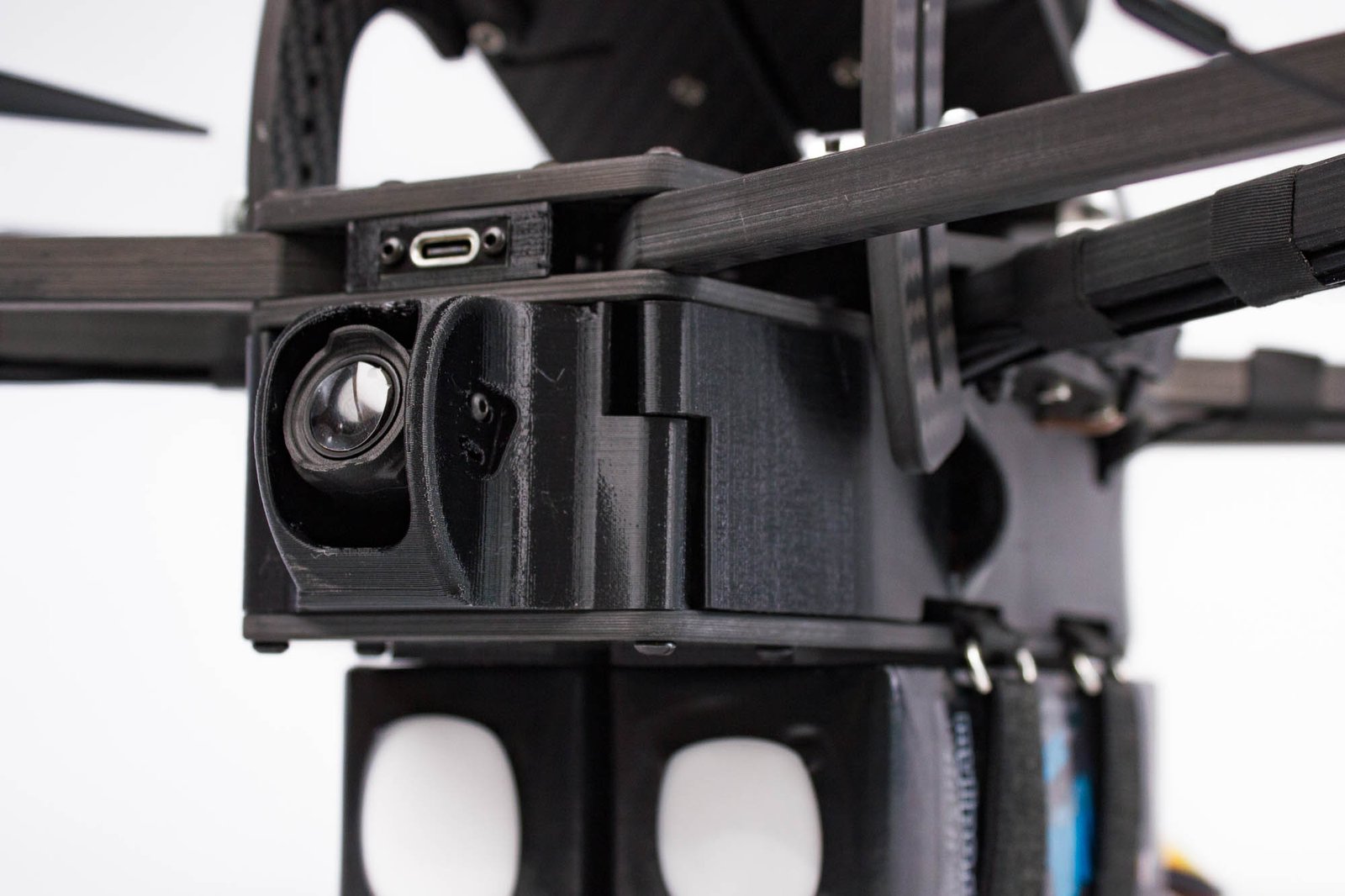

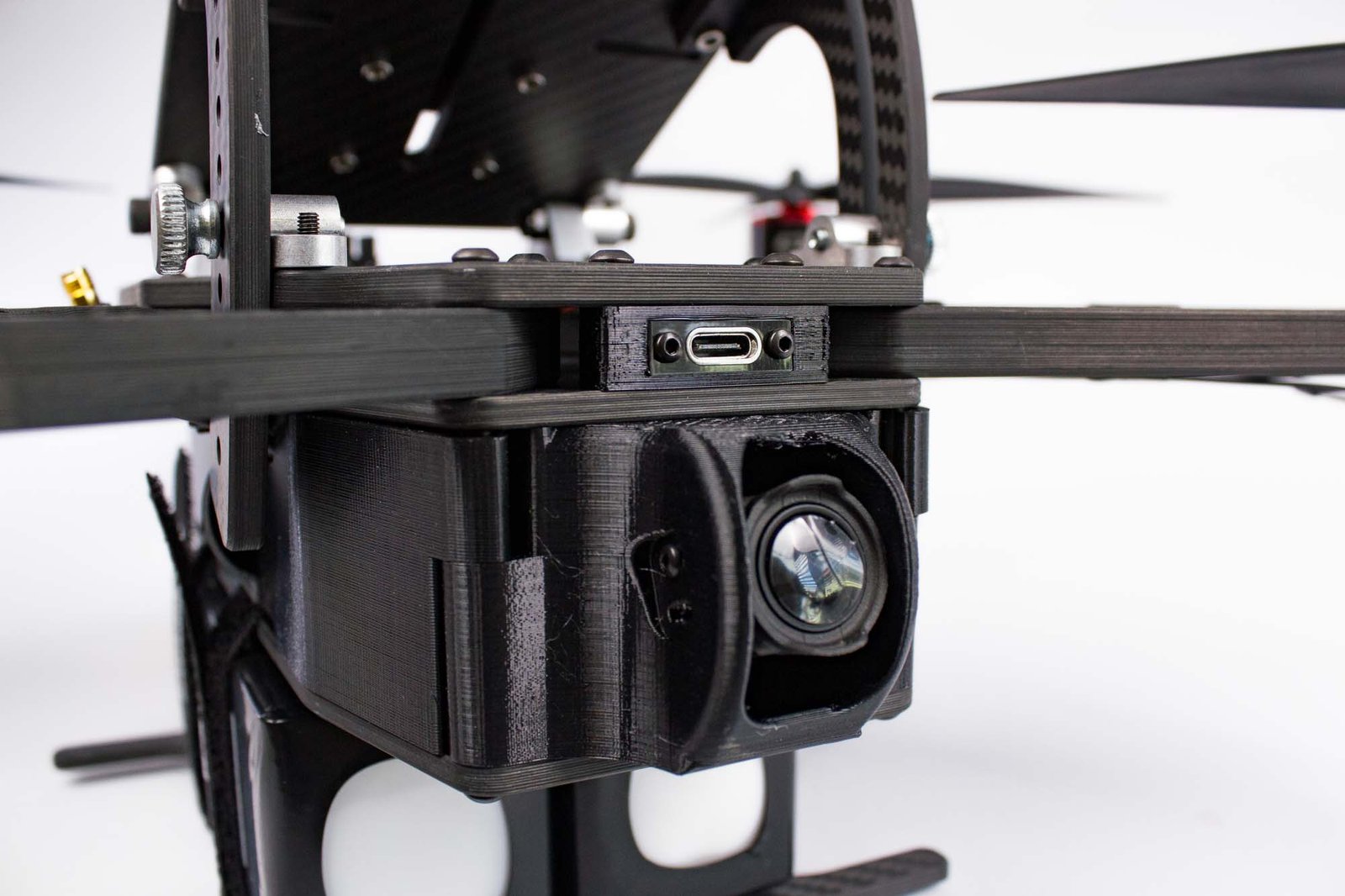

Easy USB access
The Flight controller USB port is extended for easy and fast access.
Toad in the Hole
Toad In The Hole is a slim quick release mount. TOADs can be mounted on the bottom or below the frame for quick release of Gimbal and other payloads.

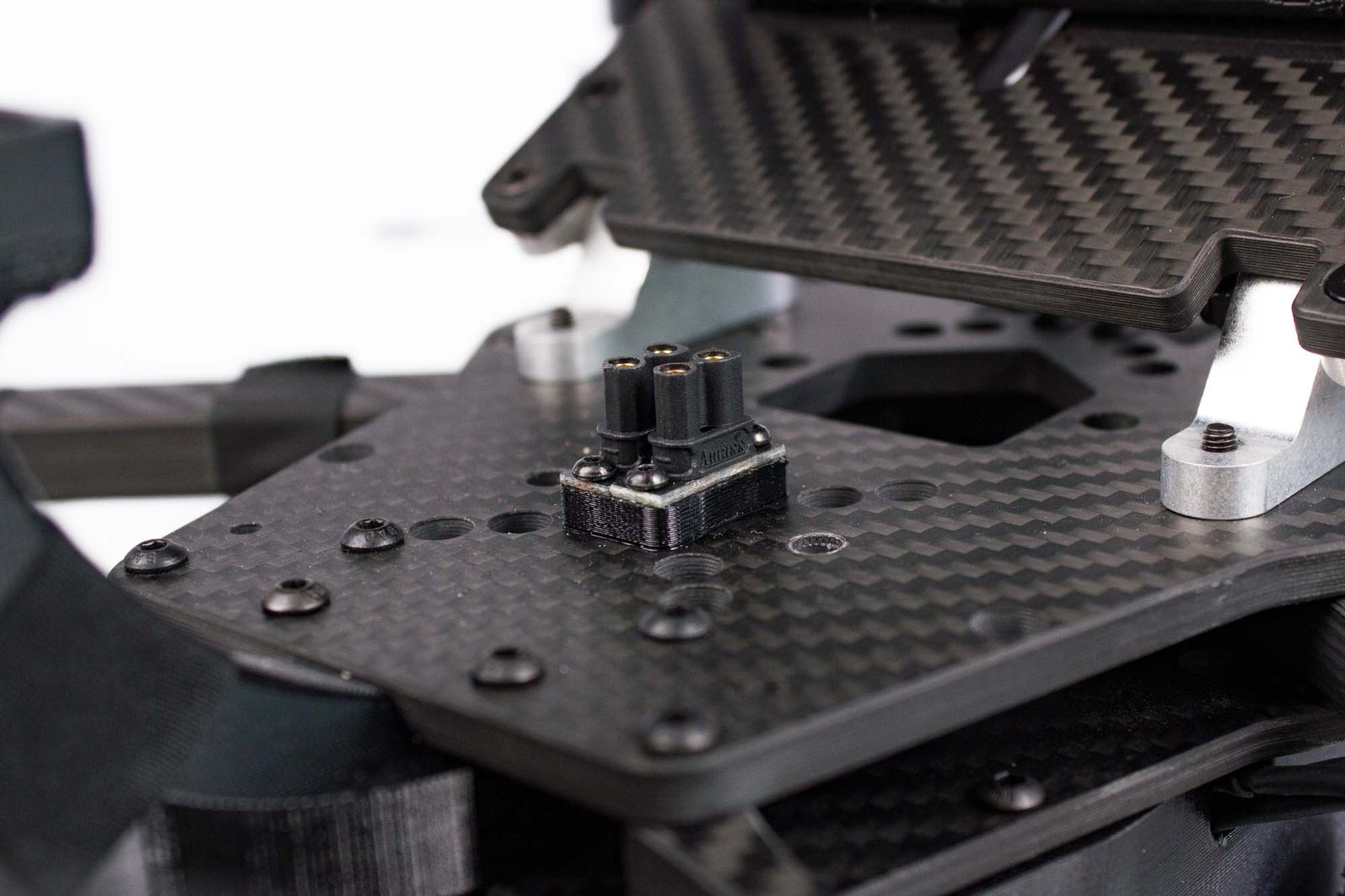

XT30 or D-Tap Power supply
XT30 / D-Tap connectors in the back provide clean, filtered 12V or 17V power to your cameras. Two slots for optional accessories.

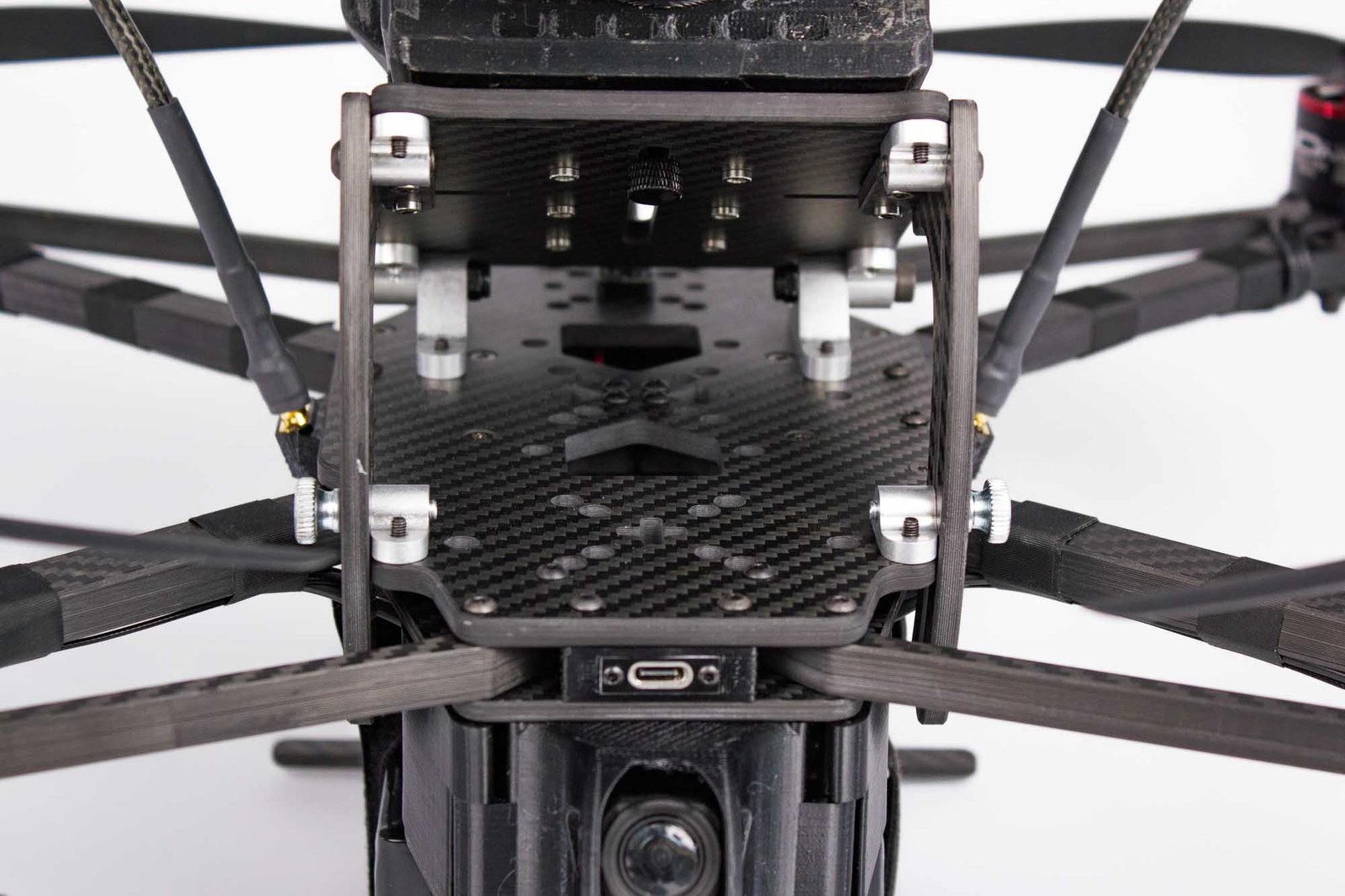

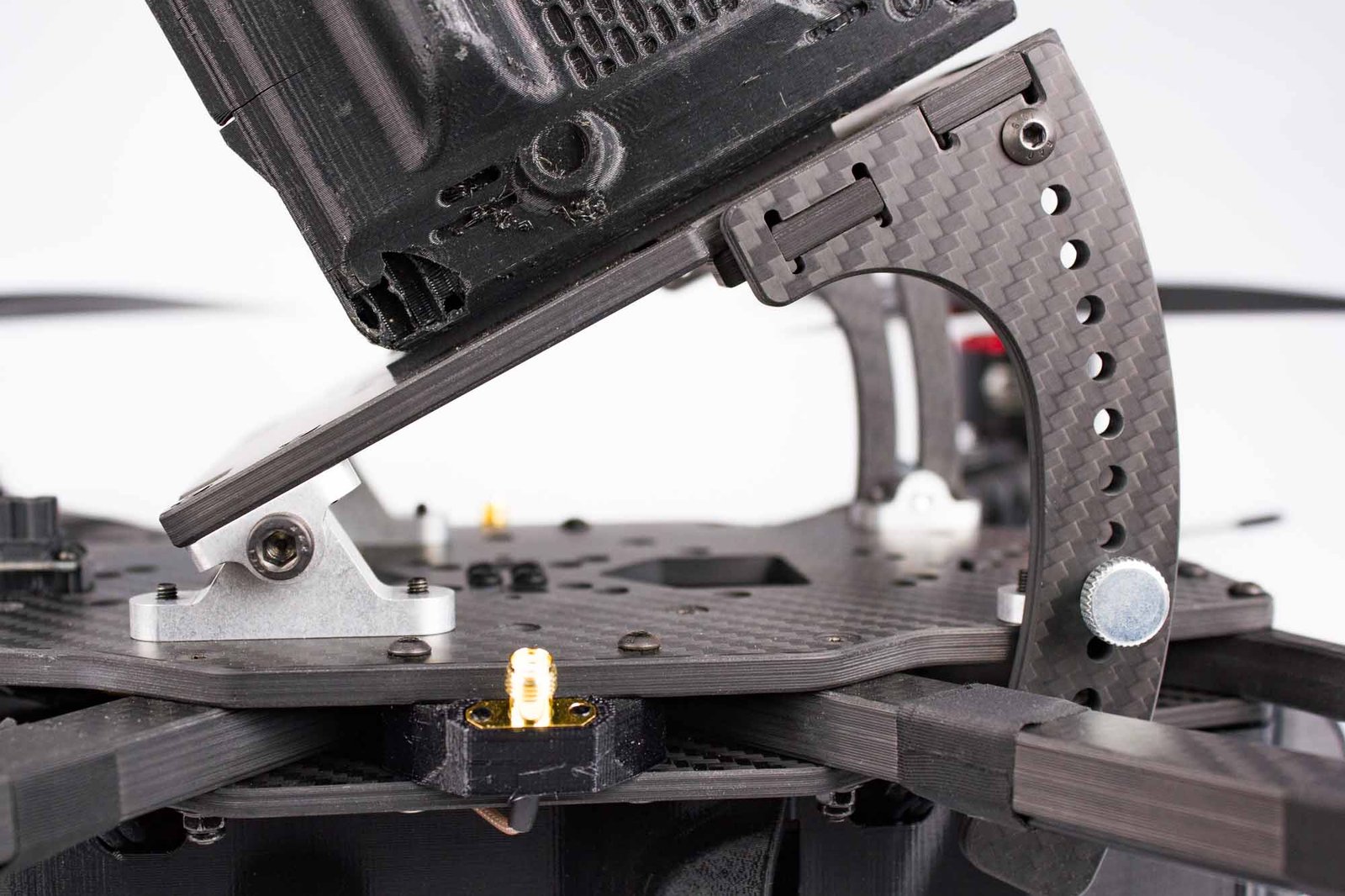

Camera mount
highlighting the back hinges of our camera mount. M5 Bolts and massive custom Aluminium CNC parts make a strong impact on flight stability with heavy cameras! We have redesigned and improved stability of the hinge design a bunch of times resulting in a super strong mount while deliberately abstaining from fancy quick mount solutions. In our experience, these often lead to vibrations and resonance issues.
Conformal coating
We apply conformal coating to the electronics of our BNFs, including the flight controller, ESC, receiver, and GPS during assembly. However, to prevent overheating issues, our standard process excludes coating the O3 air unit and O3 camera.

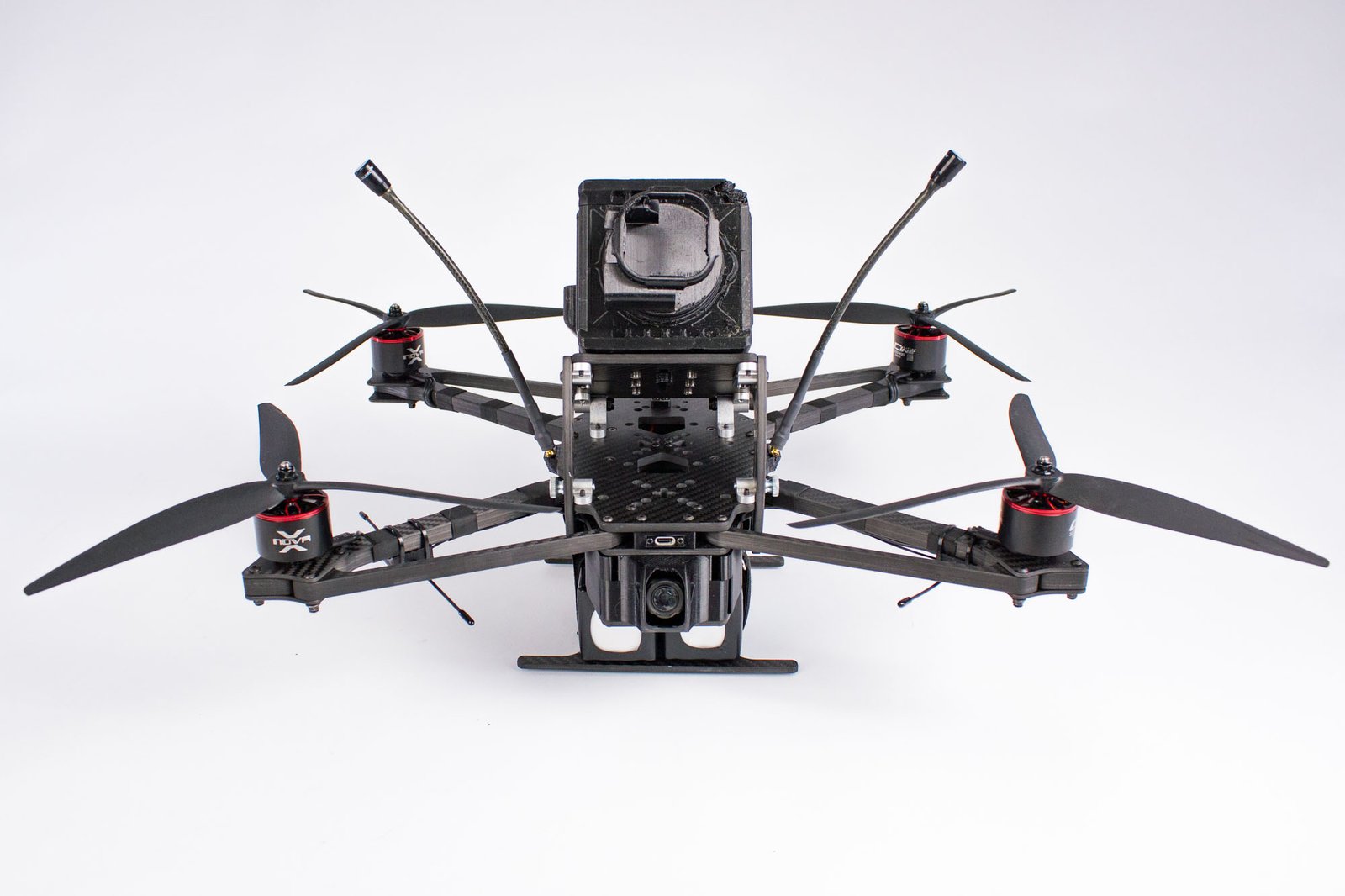

11″ Cinelifter X4 aka KinomatiX 11 Lite
We are proud to offer the KinomatiX 11 Lite as a complete BNF with everything you need to create highend Cinelifter footage. This setup is made and optimized for longer flight times while shooting cinematic footage with heavy cameras (BMPCC 4k/6k, Komodo, FX6 etc). You can expect up to 8 mins of flight time with a typical Komodo payload. of course going fast and agile means faster battery discharge.
The KinomatiX 11. Lite was optimized in many aspects to create an extremely stiff base structure for carrying heavy cameras with clean flight characteristics and gyro logs. The camera does not need to be soft-mounted with ‘traditional’ alpha gel since there are (close to) no frame resonances that render the video footage useless. Many small improvements for reliable operation originating in the cinelifter community are condensed into this BNF (1000uF 63V capacitor for each ESCs, spike absorber, clean power for Air unit & cinema camera). Choice in hardware configuration, build quality and frame design put this rig on the top shelf of current Cinelifter BNFs.
Each BNF Drone is hand built, tested and tuned here in Switzerland. Please be informed this takes time – we need roughly 2 weeks to prepare your BNF.
Top Specs
Top features
– DJI Air Unit HD or O3 Videolink
– CC BEC 2.0 12V 8A output for Camera power
– 50V 2000uF capacitor
– XNOVA 3220 480kv Motors
– Lumenier 100A 12S ESC
– made for 12s LiPos
– German 11x7x3 Propellers
– 10mm arm thickness
– conformal coating
– specific tune
– preconfigured PID profile (Brian White approves)
– preconfigured OSD
– preconfigured telemetry
– test flight performed on every drone
Kit includes
– BNF KinomatiX 11 incl. Camera mount
– 4 pairs of 11″ propellers
– 4 Kevlar LiPo Straps
– Sweet goodies to make your day!
