Description
The ultimate BNF cinelifter for
Naked BMPCC 4k/6k lightweight cameras action footage
Clean Gyro Log
With the most recent advances in PID tuning with Brian white’s genius PIDToolbox, blackbox logging became vastly more popular for PID tuning and frame review. We proudly present this plot depicting the frequency distribution on our KinomatiX BNF. Very low noise in general and no spikes in the important region of below 100hz can be observed. The log represents a 2 minutes flight with some punches, flips and cruising and the BMPCC 6k naked on top.
Protective Shell
The outer shell shields the electronics from dust and other particles.

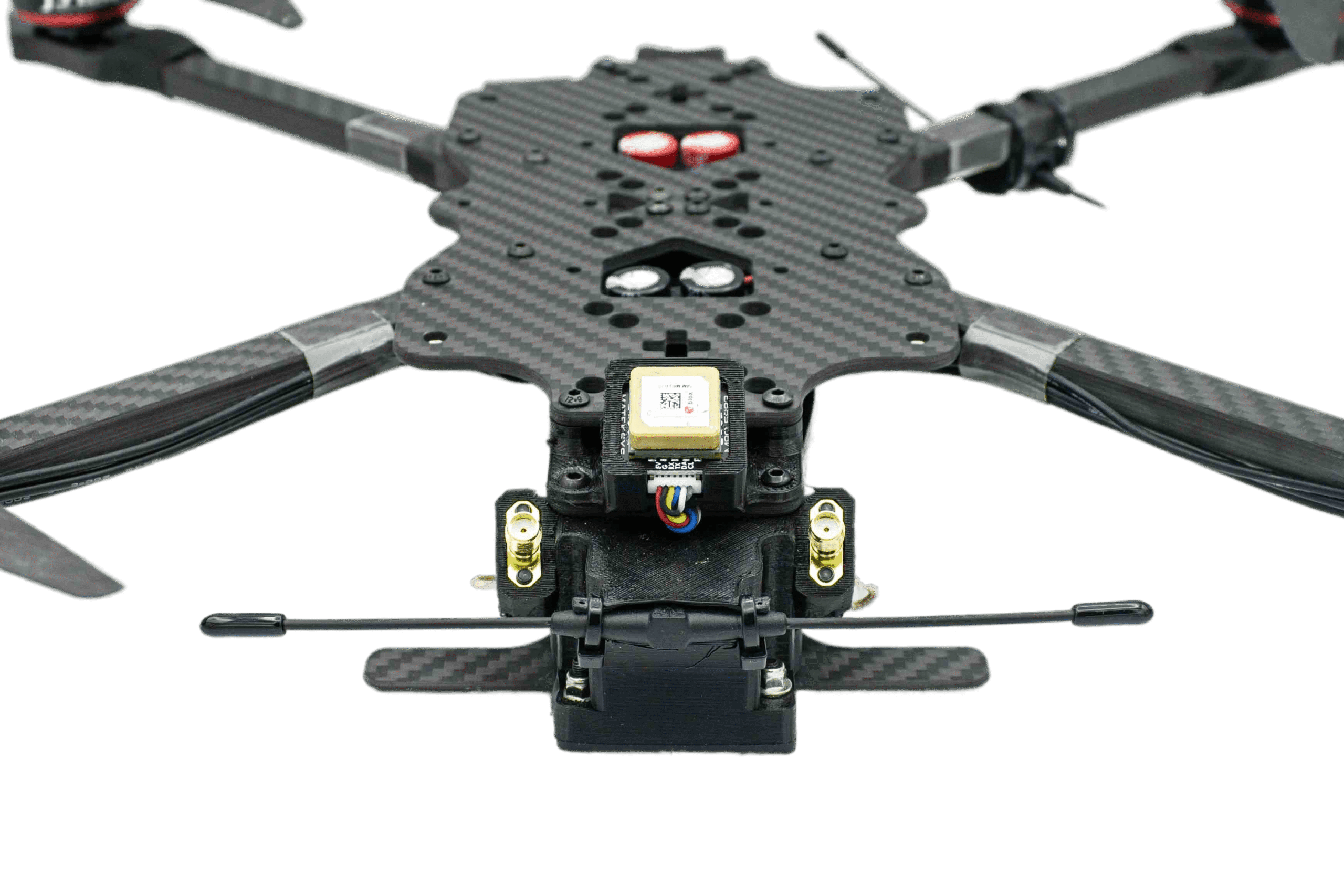

GPS & Antenna mount
The printed GPS mount will make sure it stays in place and is slightly angled to ensure a fast gps lock and strong connection during forward flight. The integratged XT90/AS150 mount allows hassle free Lipo changing. SMA antenna mounts are also integrated into the same 3D printed part, angle towards the back to ensure ideal placement in forward flight.
3D prints
TPU Mount for all components used in our Builds (Pololu, Air Unit, Nano RX Diversity, 50v Caps etc.) are available and included in the frame Kit. Forget about zip ties and tape!
XT30 Power supply and cap placement
A cutout in the center of the frame allows ideal (close to load) placement of capacitors for ESC and Pololu. The XT30 connector to provide power to the BMPCC camera can be stored away safely in the front if the camera is not attached to the drone.

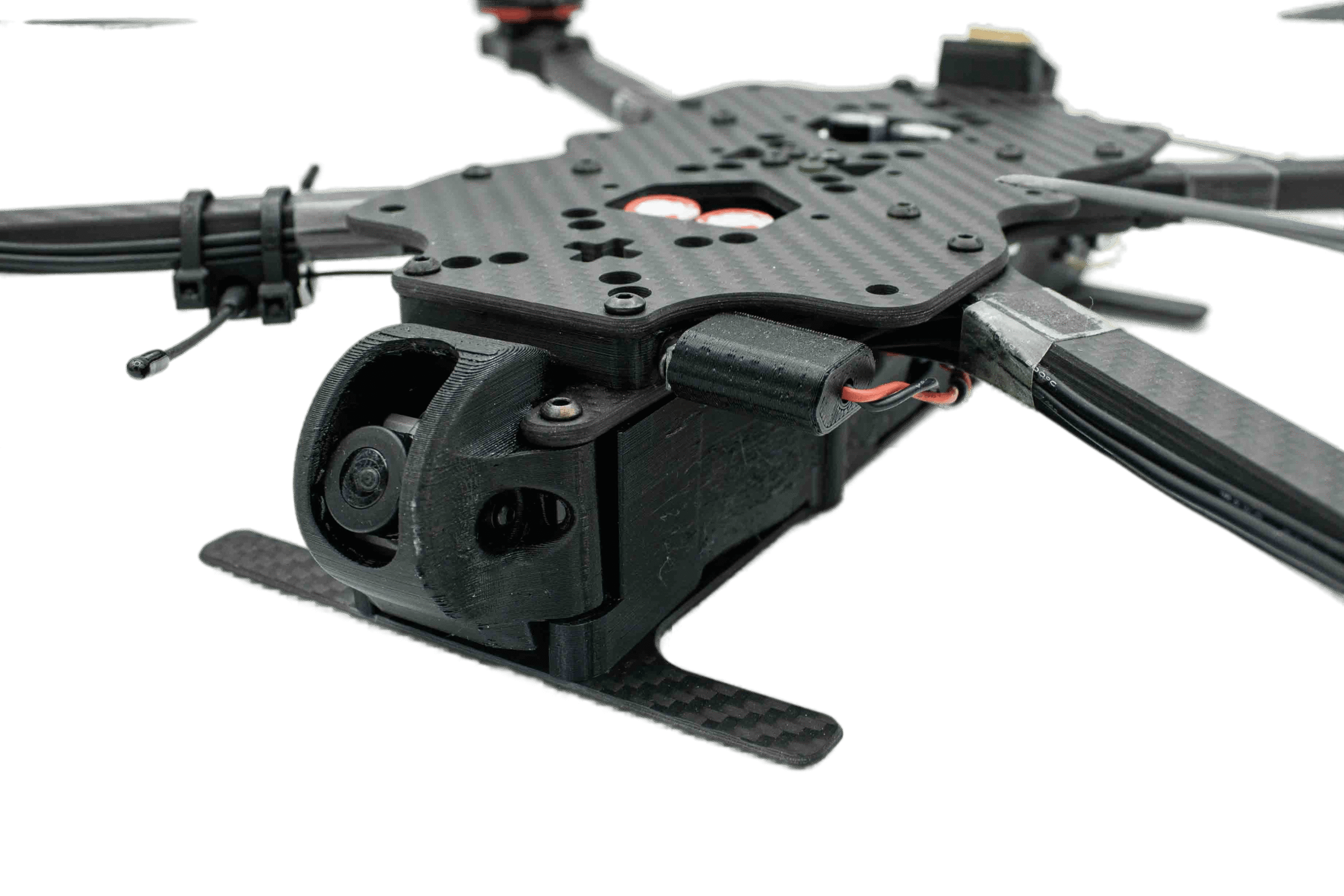

Camera mount
The KinomatiX Lite is made for naked BMPCC or in combination with the UCM any other lightweight cinema camera.
Conformal coating
We apply conformal coating to the electronics of our BNFs, including the flight controller, ESC, receiver, and GPS during assembly. However, to prevent overheating issues, our standard process excludes coating the O3 air unit and O3 camera.

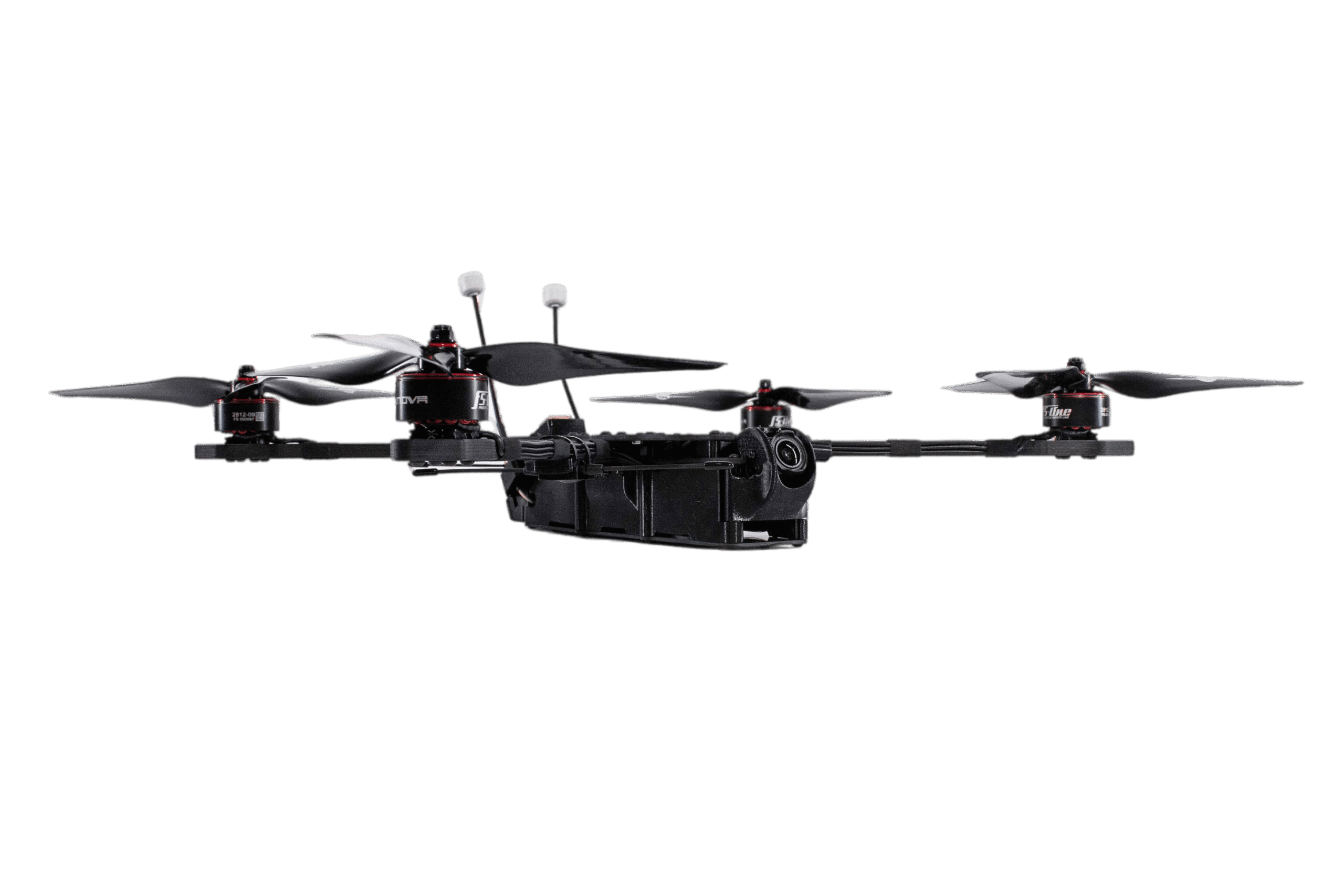

8″ Cinelifter X4 aka KinomatiX Lite
After a long journey of refinements and design discussions we are proud to release the KinomatiX Lite as our 8-9″ X4 cinelifter frame. The frame is made to carry any naked BMPCC 4k or 6k camera on the market as well as other lightweight cinema cameras with our Universal Camera Mount UCM.
The KinomatiX Lite was optimized in many aspects to create a stiff base structure for carrying lighter cinema cameras with clean flight characteristics and gyro logs. Many small improvements for reliable operation originating in the cinelifter community are condensed into this frame. 3D prints for every part allow a very clean build with great cable management and component placement.
The components used for this build are among the best available on the market. XNOVA proves to be a highend motor manufacturer in every motor class, same goes for AIKON on their stacks with extremely high reliability. Pololu are used for voltage conversion for the BMPCC and Air unit, panasonic capacitors make sure voltage spikes do not cause any issues for the build.
Huge shoutout to Ellis van Jason for helping us to improve many design parameters of this frame for virtually perfect flight characteristics and smooth operation even in harsh conditions.
Top Specs
Top features
– Made for DJI Air Unit HD Videolink
– Use a BEC for camera power via XT30
– Optimized for carrying BMPCC naked cameras
– 8″ Propellers
– 8mm arm thickness
– conformal coating
– specific tune
– preconfigured PID profile
– preconfigured OSD
– preconfigured telemetry
– test flight performed on every drone
Kit includes
– KinomatiX Lite CFK Kit
– Standoffs and Screws
– 3D parts Kit
– Silicon Battery Pad
– 2 Kevlar LiPo Straps
– Sweet goodies to make your day!
– No cinema camera included!
