Description
Dust / SD Card protection
3d printed parts provide protection from dust and will keep your SD card safe from falling out and loosing your footage. The mainboard is conformal coated to provide some protection against water / humidity.

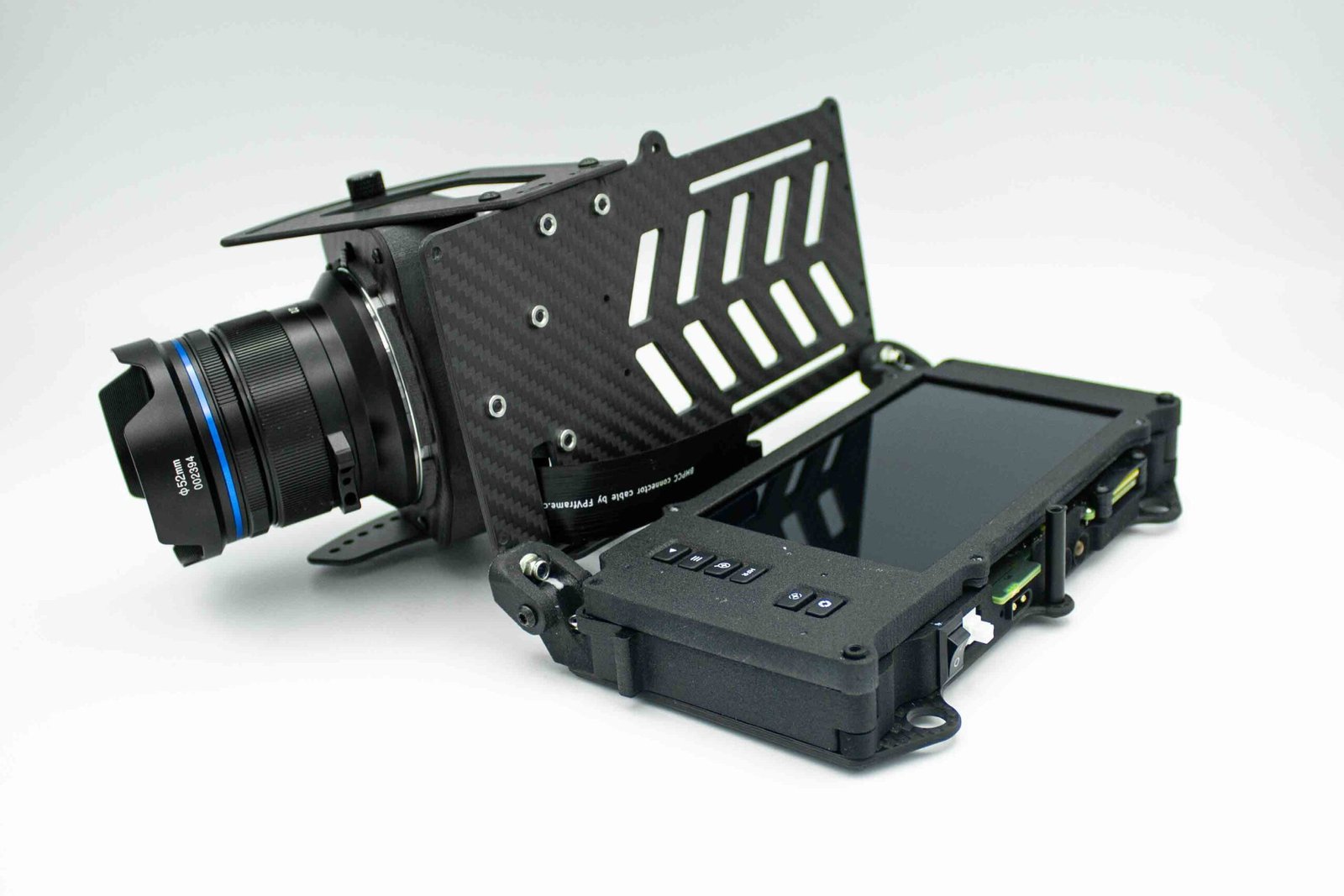

Built in display
The integrated display increases the usability of the naked camera. Due to Firmware limitations, booting the camera is only possible with the LCD connected. With the integrated display, changing batteries on your drone (and thus rebooting the camera) can be done more efficient and without connecting the display! The disadvantage of the added weight is outweighed by the increase in user friendliness.

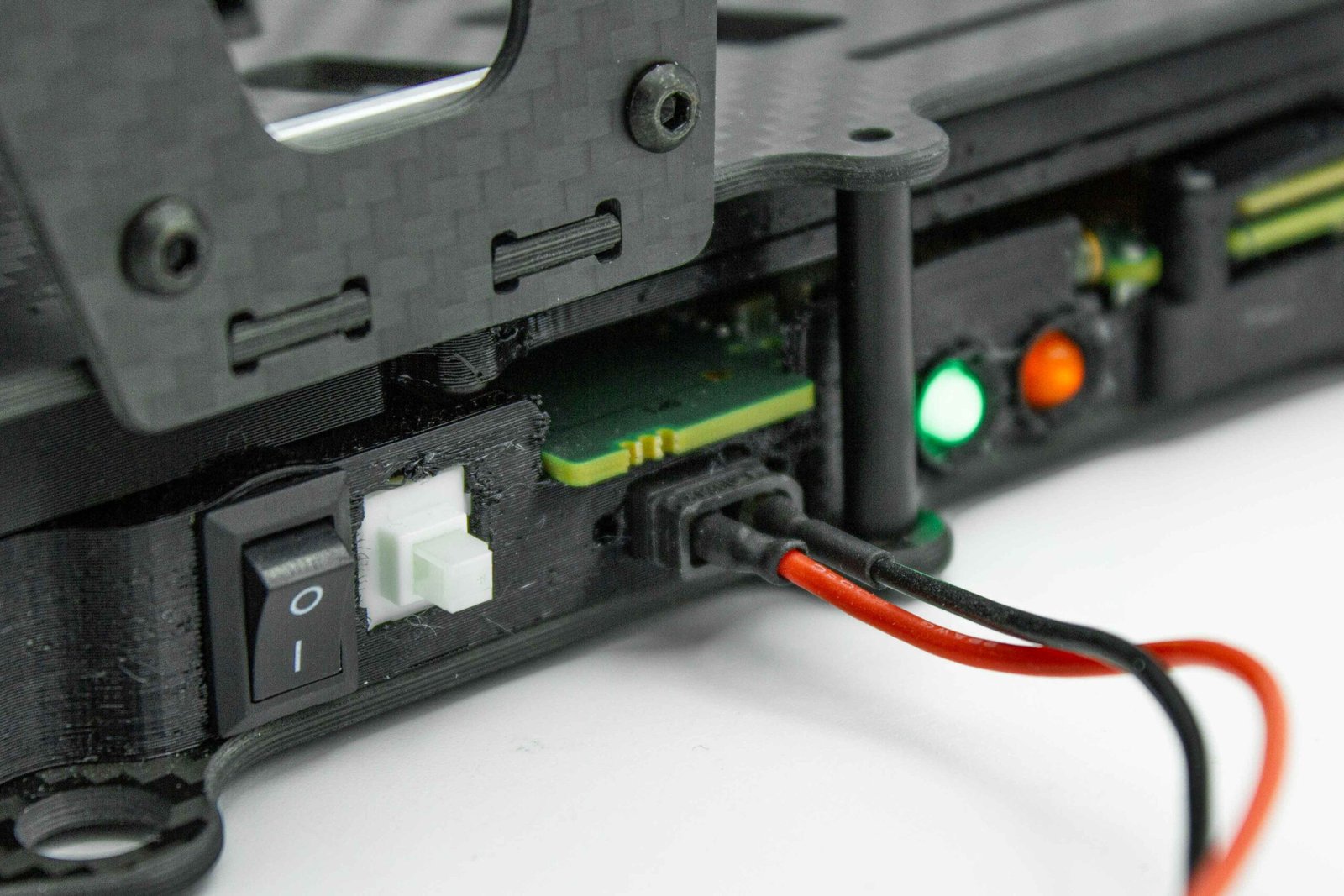

Custom Controls
We designed a button and switch combination that allows for easy camera operation. The power button is a solid on off switch that snaps in place. The record button is a single push button that you can easily access to start the footage. Two LEDs provide information about camera status (ON/REC).

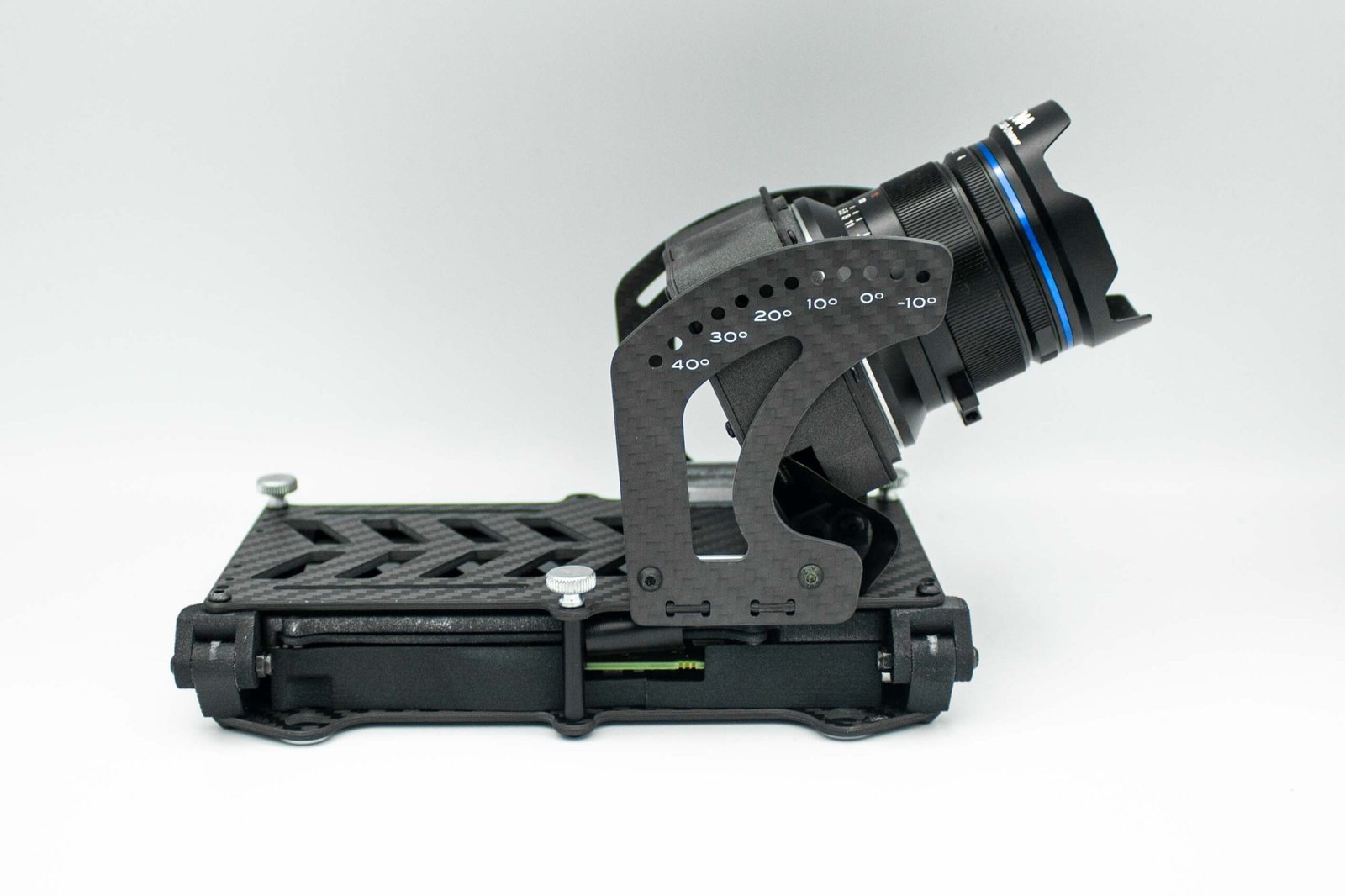

Adjustable Camera Angle
With our construction, you can easily adjust the camera angle to your likings. Just loosen the two thumbscrews a litte bit, adjust the angle, and screw them tight. Also this design provides more stiffness and some extra protection for the image sensor.

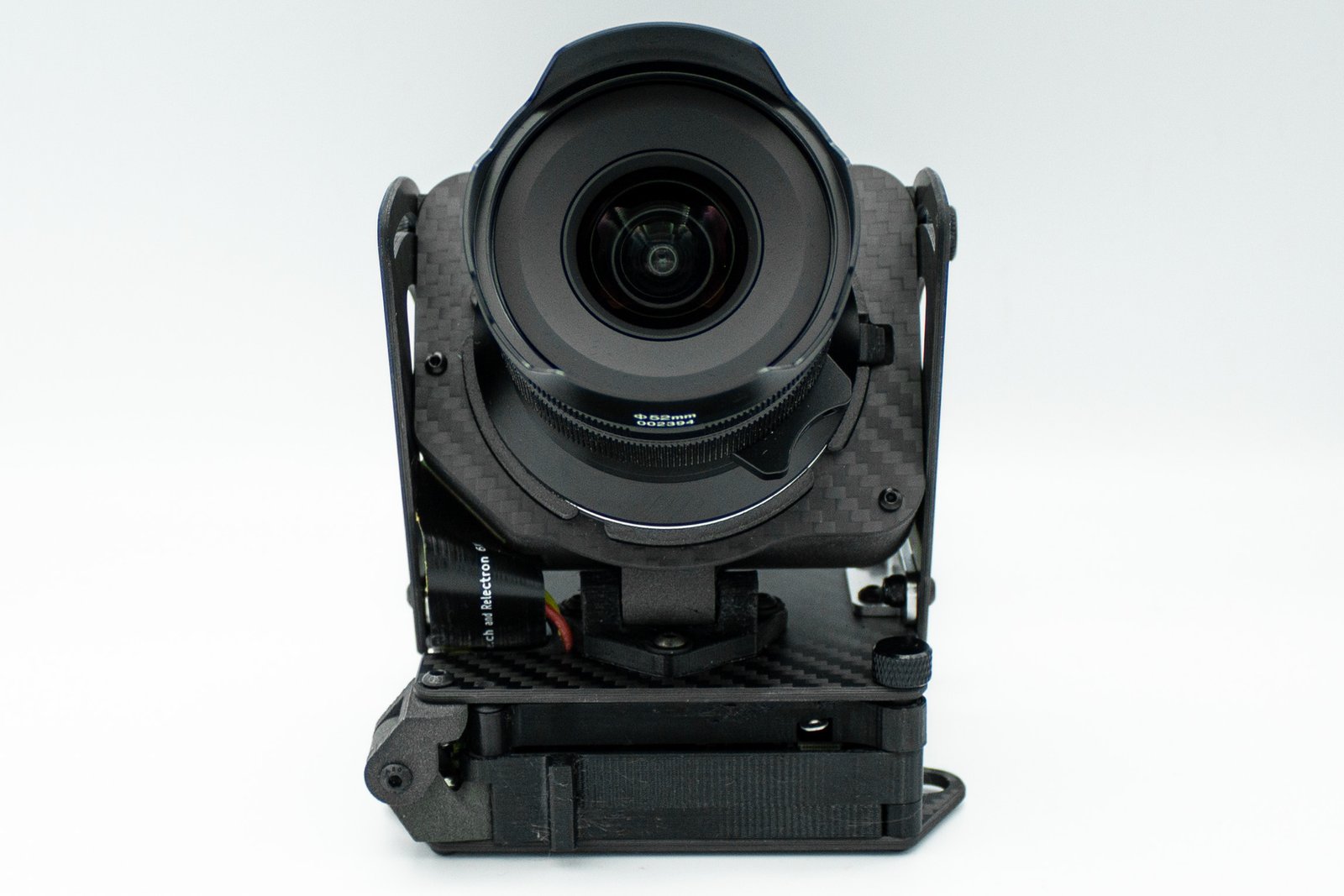

Reinforced Sensor Housing
We provide a custom housing for the image sensor printed in SLS for maximum precision.
This nylon housing is reinforced with 2mm carbon fiber plates to keep the sensor safe and the whole construction stiff. The lever force of the lens is diverted in the carbon fiber mainframe to protect the image sensor. The lens housing is prepared to include a 20×20 flight controller for blackbox logging and video stabilization with Gyroflow.

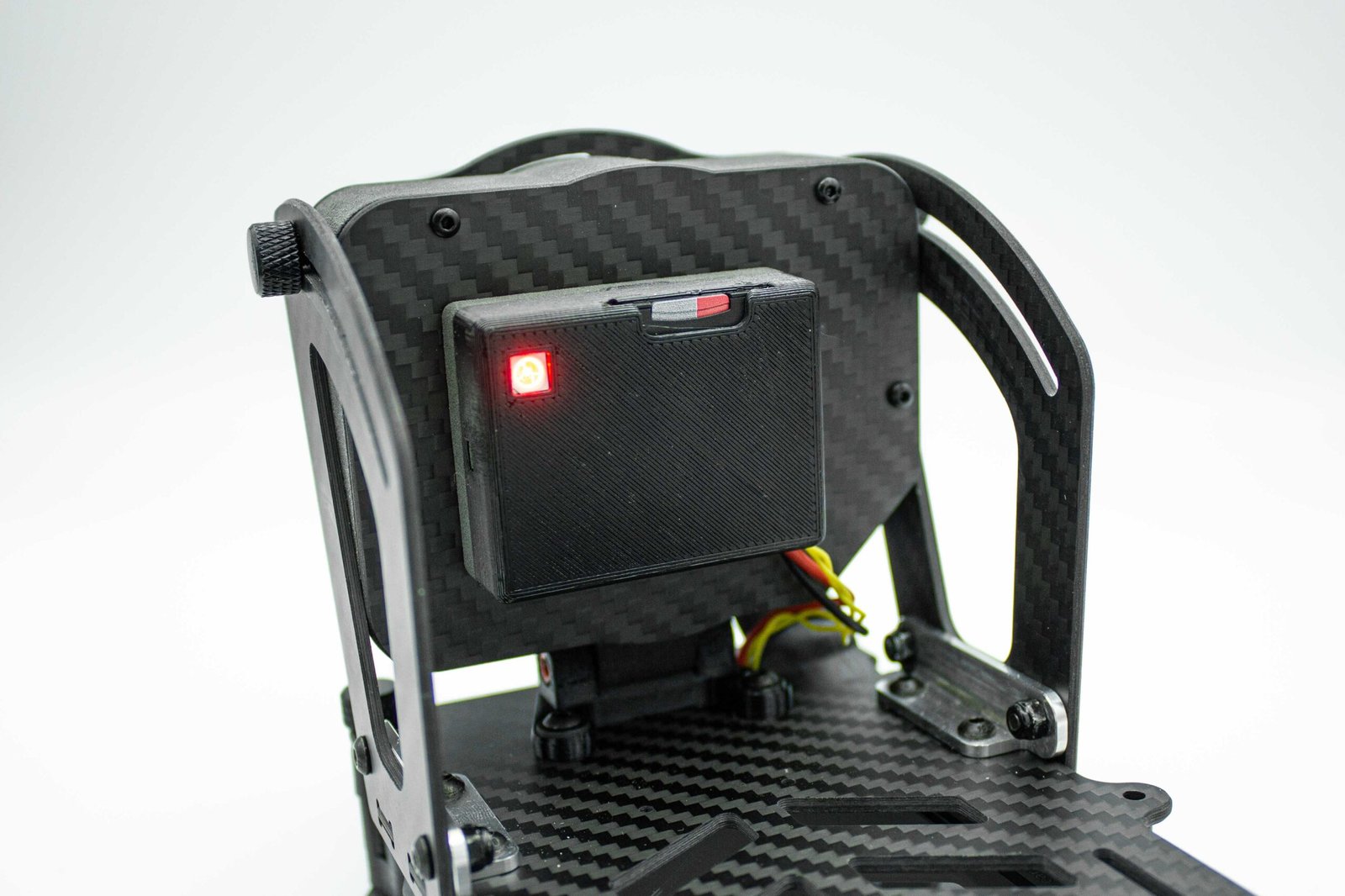

Gyrologger
Our custom gyro logger is optionally included with our naked BMPCC cameras. Its positioned nicely and securely behind the lens instead of on top as it is with many other naked BMPCC cameras. The logging automatically starts together with the REC-button of the camera, speeding up the workflow with stabilization in Gyroflow. The RGB LED on the logger provides information about the current logging state.
Naked Blackmagic Pocket Cinema Camera 4k
This is a modification DIY KIT for your Blackmagic Pocket Cinema Camera 4k or 6k. If you already have this camera and want it naked you can buy this Kit and rebuilt your camera into our naked BMPCC model with integrated screen.
Here is our wiki manual for this kit (4k camera):
https://fpvframe.ch/wiki/doku.php?id=public:nakedbmpcc4k
Top features 6k
– 535g without lens (incl. gyrologger)
– Canon RF Lens-Mount

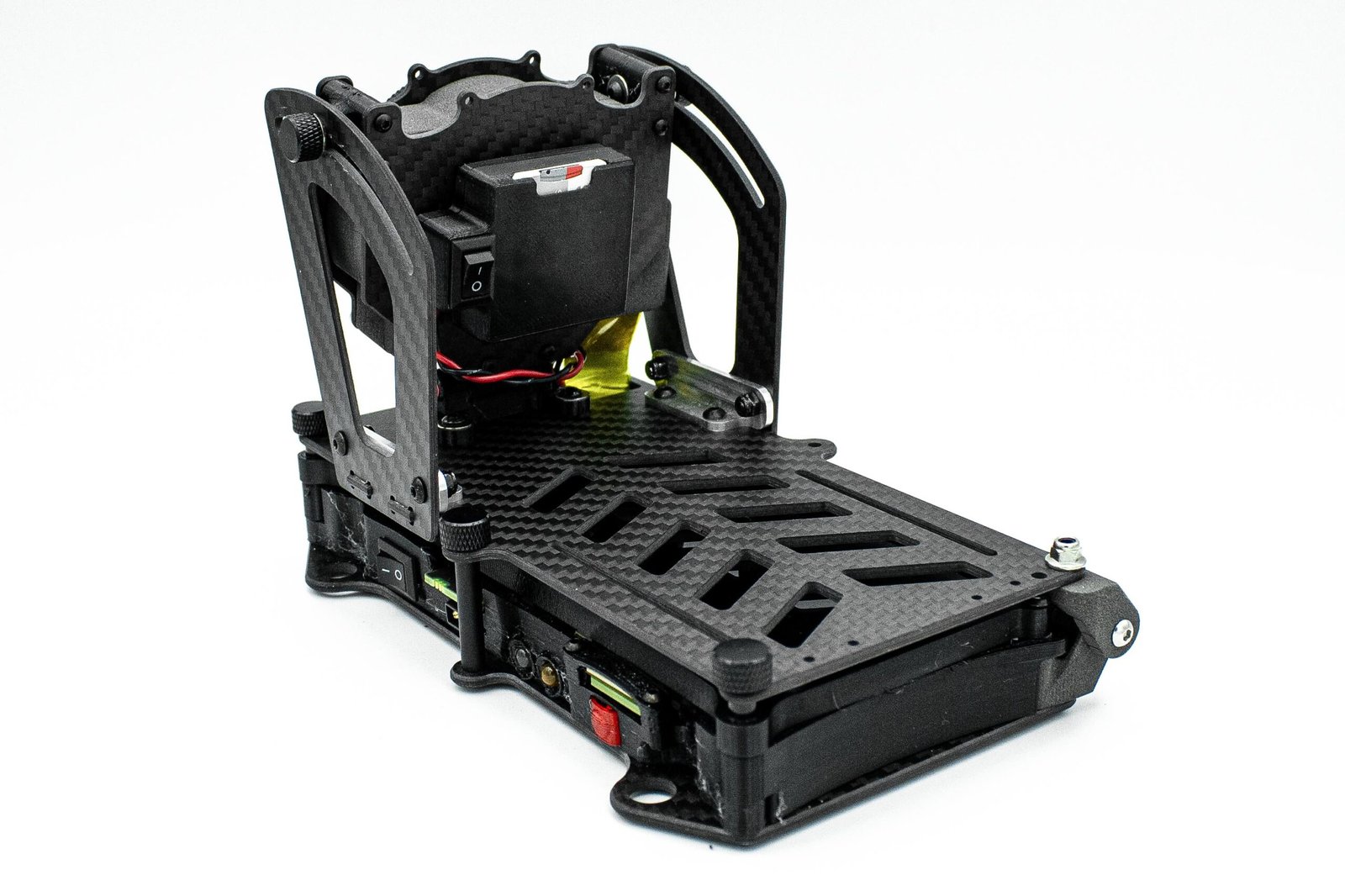

– Easy fold design
– Custom image sensor cable
– Custom control board with toggle switch for power and button for recording with status LED’s
– 2mm carbon fiber plates on body and sensor housing
– conformal coated electronics
– 3d printed sensor housing, reinforced with carbon plates
– ready for Blackbox logging & Gyroflow
– Easy camera angle adjustment
– LePigeon softmount base
Top features 4k
– 530g without lens (incl. gyrologger)
– Easy fold design
– Custom image sensor cable
– Custom control board with toggle switch for power and button for recording with status LED’s
– 2mm carbon fiber plates on body and sensor housing
– conformal coated electronics
– 3d printed sensor housing, reinforced with carbon plates
– ready for Blackbox logging & Gyroflow
– Easy camera angle adjustment
Kit includes
– CFK Cage
– PA12 Nylon Sensor housing
– CFK Sensor housing
– Sensor ribbon cable extended
– Buttons, LED and custom cables
– 2 Kevlar LiPo Straps
– Screw & Standoff set
– TPU dampers
