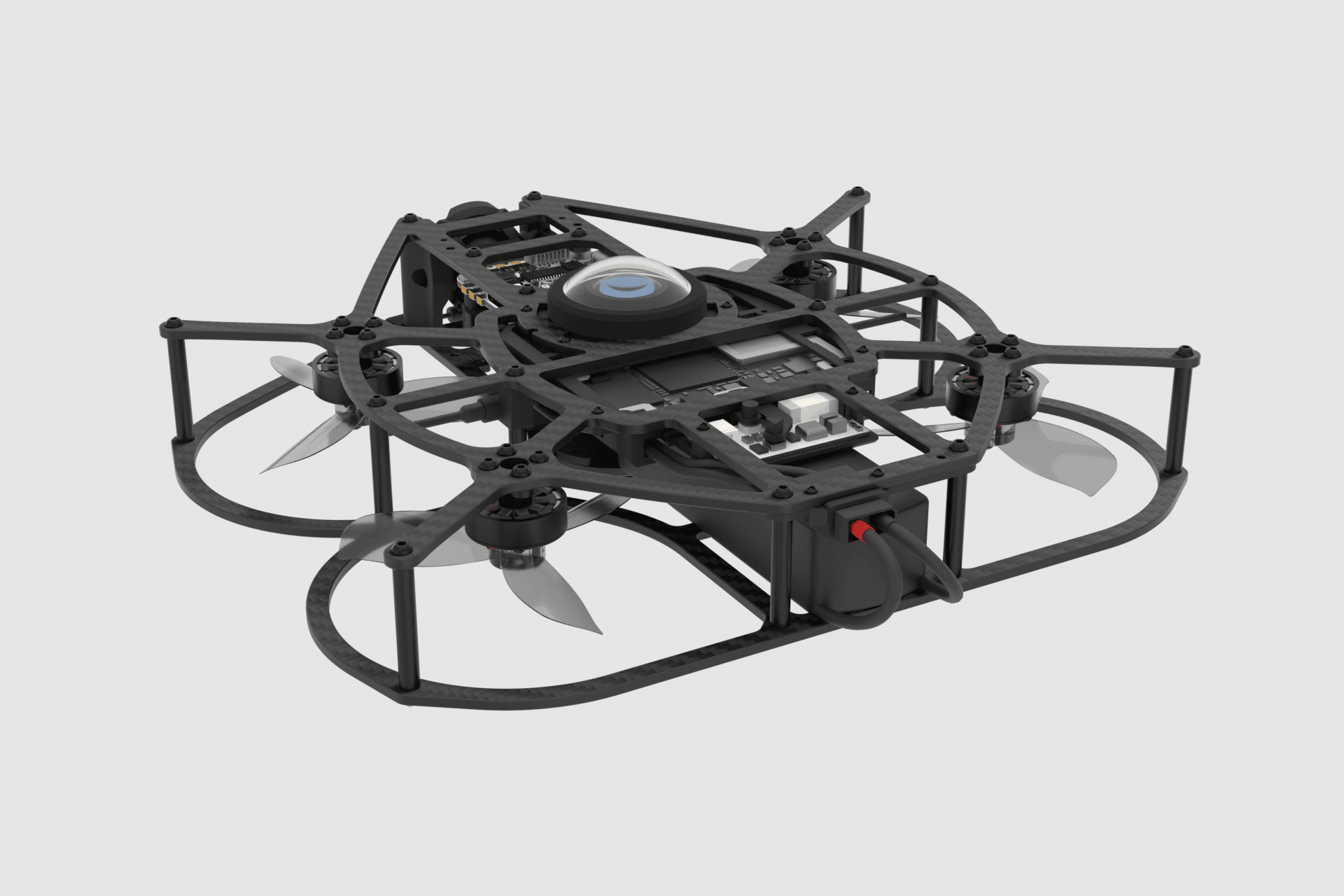

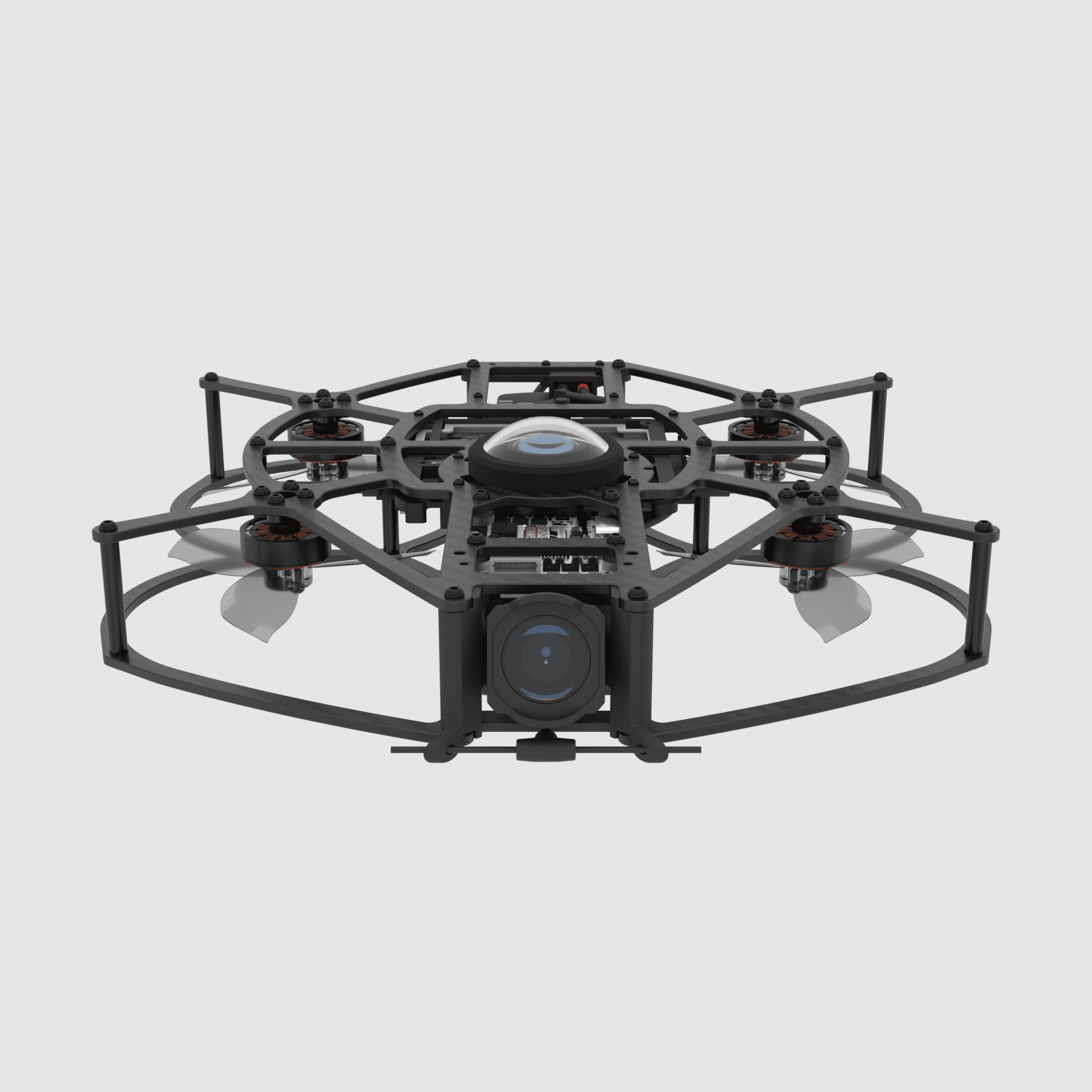

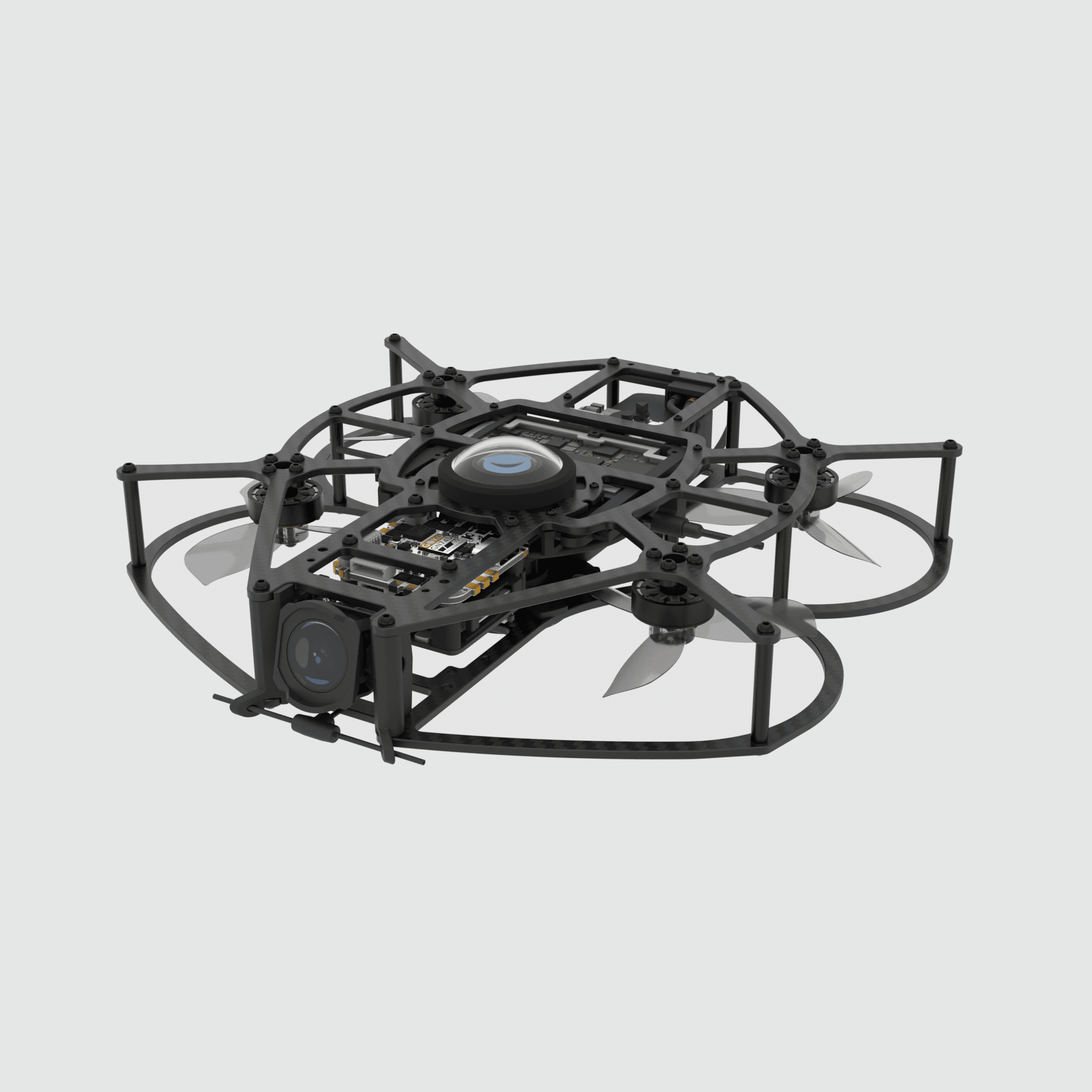

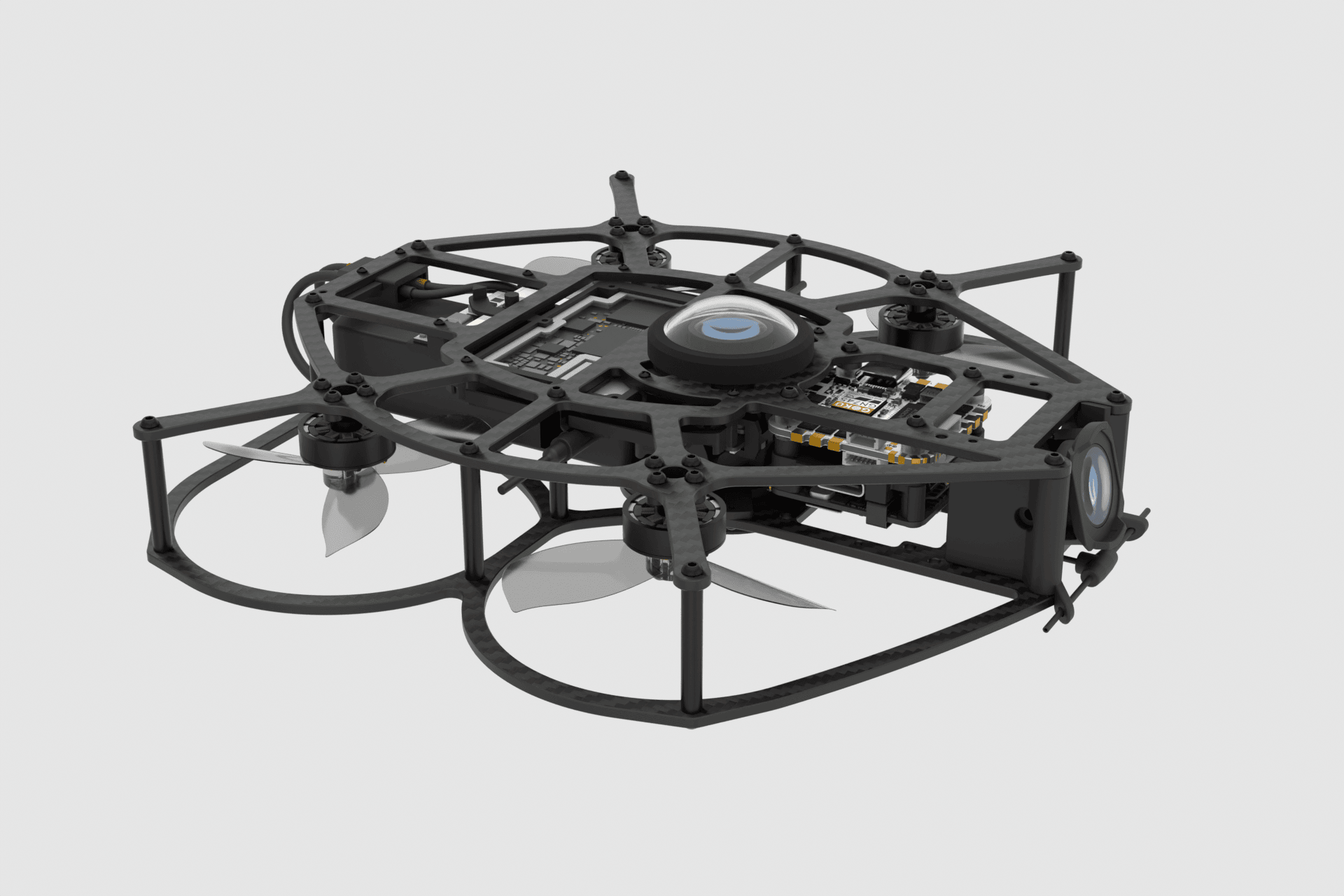

Introducing OmniX – The smallest and lightest FPV drone for 360° filming
OmniX is the new 360° FPV drone by FPVframe.ch and skkyFPV — designed and developed in Switzerland. It combines the real FPV flying experience with integrated 360° filming in an incredibly compact and lightweight form. With the integrated GoPro MAX2, OmniX captures everything around you. Just fly, record, and choose the best angles later — no missed shots, no need to hit the perfect framing in flight. Small enough to fit in the palm of your hand and weighing under 250 g, OmniX is a real FPV drone with full acro mode and no artificial flight limitations. Perfect for dynamic action shots, creative camera moves, and maximum freedom in post-production. Shipping starts end of july.
Highlights
– Approx. 35g carbon frame (2 mm thick)
– GoPro Naked GoPro MAX2, BEC & GP MAX2 Ribbon
– Electronics: Two 25.5×25.5 mm mounting patterns for AIO and VTX (or mounted as a stack)
– VTX: DJI O4 lite/Pro / skkyFPV Naked O4 Pro Kit / mounts can be adjusted for other VTX
– Camera: 0-30° camera angle plus ND Filter support
– Motors: 9×9 mm mounting; 1404 motors recommended (~3800/4600KV for 4S)
– Props: 2.5 inch; Gemfan D2.5–3 props recommended
– Receiver: ELRS / Crossfire / DJI
– Battery: Optimized for Tattu LiHV 4S 550-850mAh, max. dimensions: 75mm length x 23mm width x 17mm height
– Landing gear servo (optional): KST X06H V6
– GPS (optional): Flywoo GM10 Nano V3
– 360° cameras are not suitable for filming indoor due to stitching – a minimum distance of 1m from objects recommended
Top Specs
Top features
– Approx. 35g carbon frame (2 mm thick)
– GoPro Naked GoPro MAX2, BEC & GP MAX2 Ribbon
– Electronics: Two 25.5×25.5 mm mounting patterns for AIO and VTX (or mounted as a stack)
– VTX: DJI O4 lite/Pro / skkyFPV Naked O4 Pro Kit / mounts can be adjusted for other VTX
– Camera: 0-30° camera angle plus ND Filter support
– Motors: 9×9 mm mounting; 1404 motors recommended (~3800/4600KV for 4S)
– Props: 2.5 inch; Gemfan D2.5–3 props recommended
– Receiver: ELRS / Crossfire / DJI
– Battery: Optimized for Tattu LiHV 4S 550-850mAh, max. dimensions: 75mm length x 23mm width x 17mm height
– Landing gear servo (optional): KST X06H V6
– GPS (optional): Flywoo GM10 Nano V3
– 360° cameras are not suitable for filming indoor due to stitching – a minimum distance of 1m from objects recommended

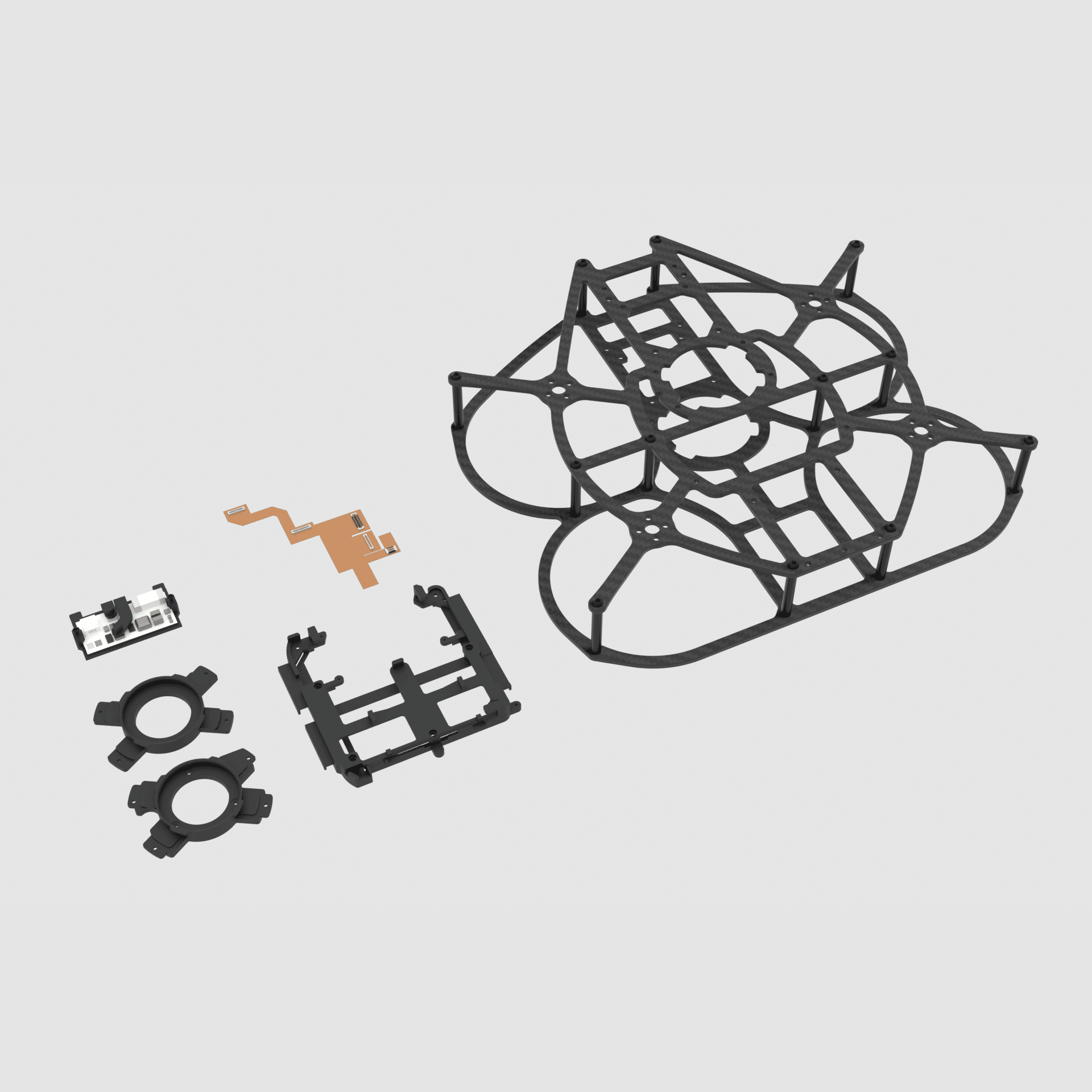

Kit includes

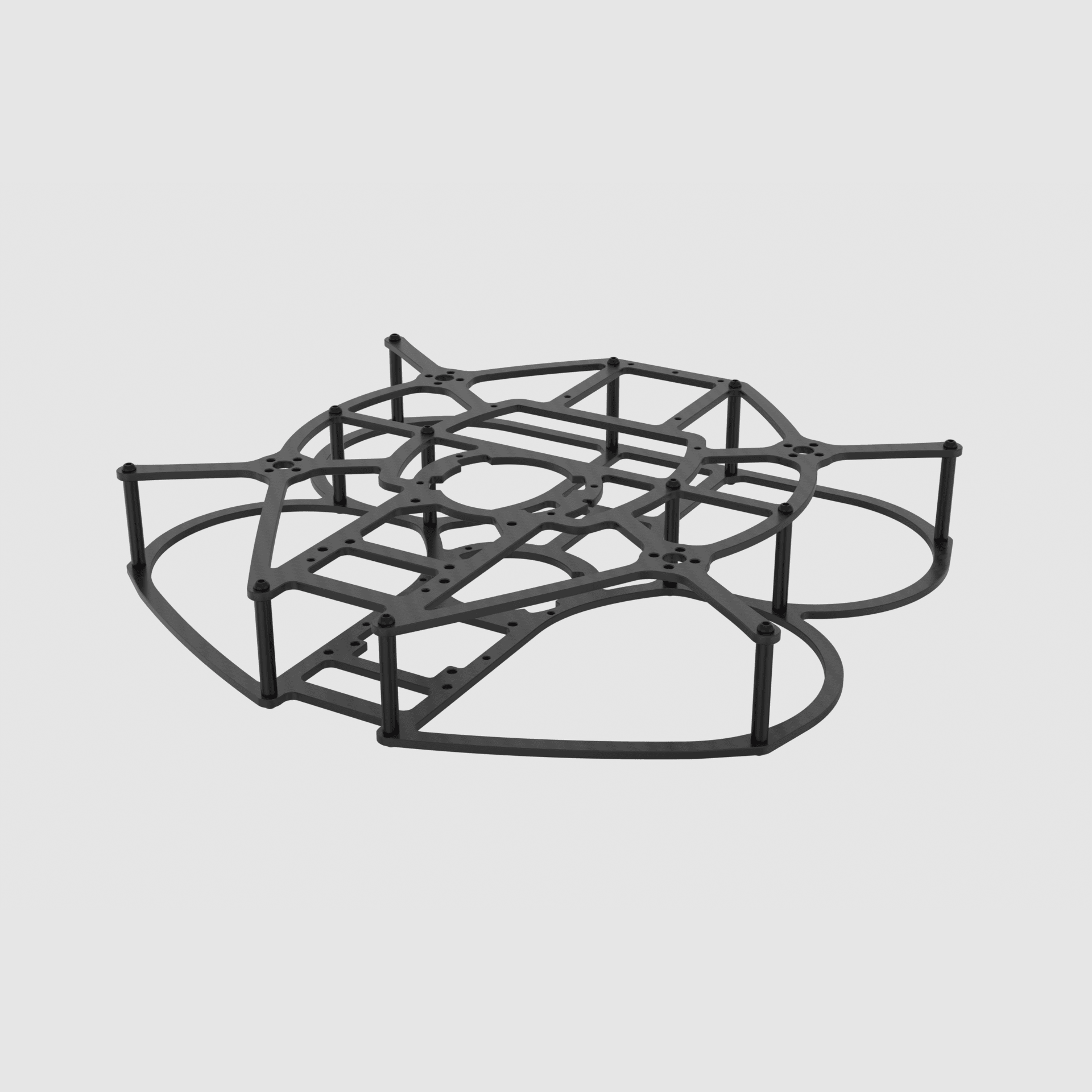

– 1x Carbon Frame
– 1x GoPro MAX2 BEC & Ribbon
– 1x Screw & Standoff Bag
– 1x GoPrp MAX2 Soft Mount
– 1x Front Cam Soft Mount (incl. Receiver and Antenna Mount)
– 1x skkyFPV Naked O4 Pro Kit (VTX and Cam Mount)
– 1x XT30 Mount
– 1x each Antenna Mount L/R
– 1x GPS Mount
– 1x Servo Mount
– 1x Battery Strap

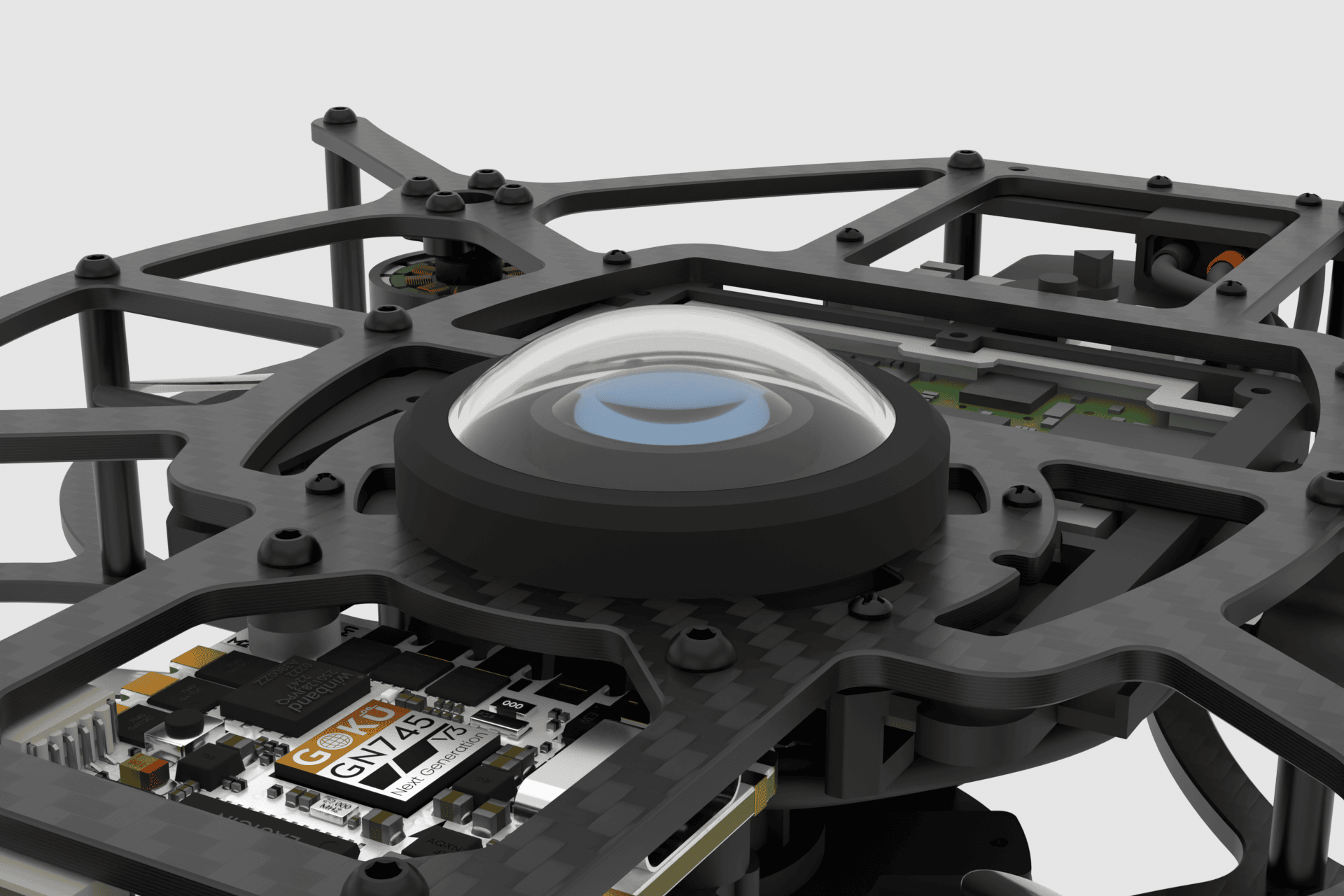

GoPro MAX2 integrated
Record true 8K 360° footage in 10-Bit LOG without any drone in view. Never miss a shot and unlock completely new perspectives.
Sub 250g Freedom
Fly nearly everywhere with <190g dry & <250g all-up-weight (650mAh)
Twist-and-go replaceable lenses
MAX2 lenses are made from super-strong optical glass, making them tough to damage. And if you crash hard, you just swap lenses and get back to the action

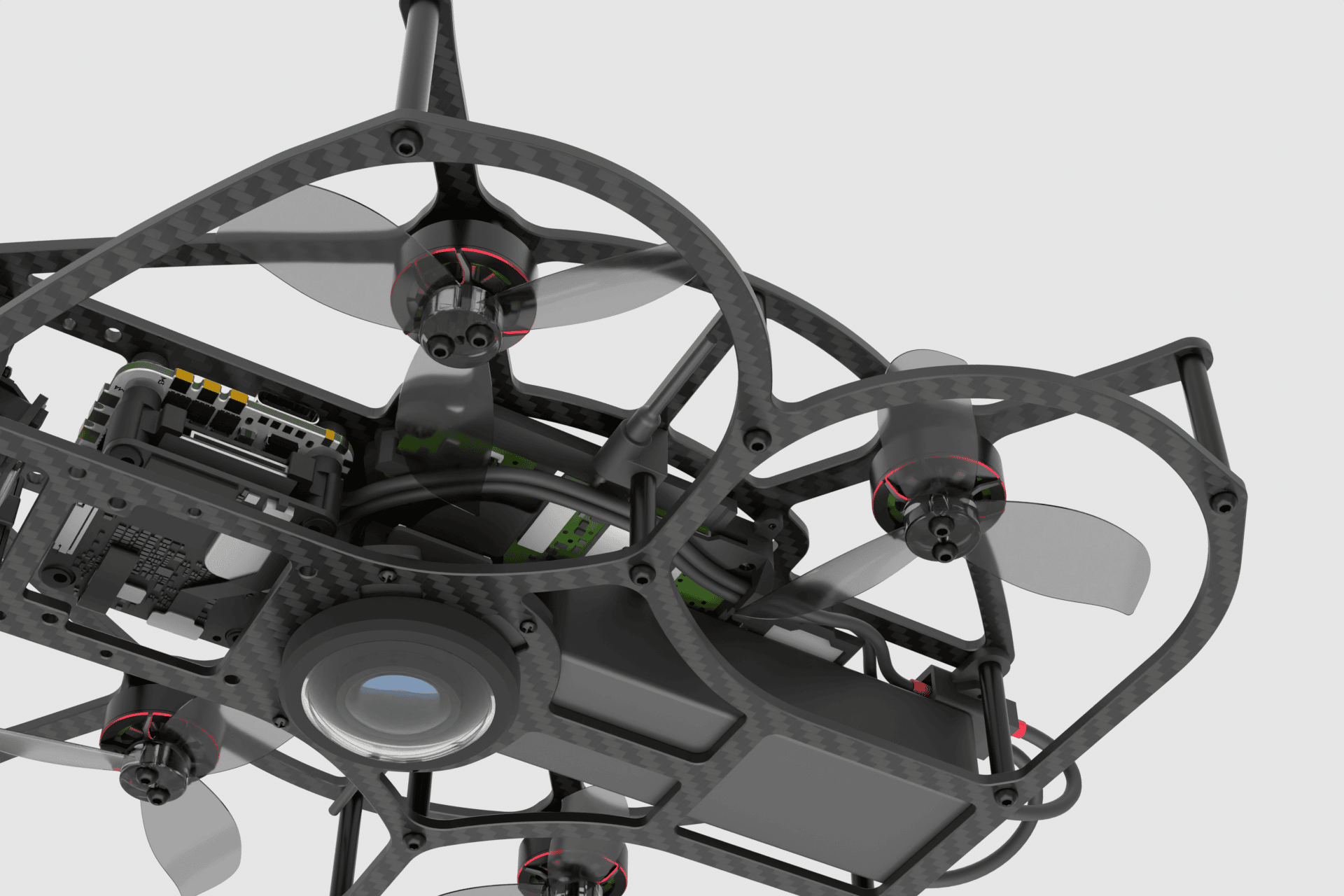

Small 2.5″ with prop guards
Cinewhoop that freestyles with powerful 1404 motors and 2.5” props – so you can nail every action shot with top speeds of 90 km/h

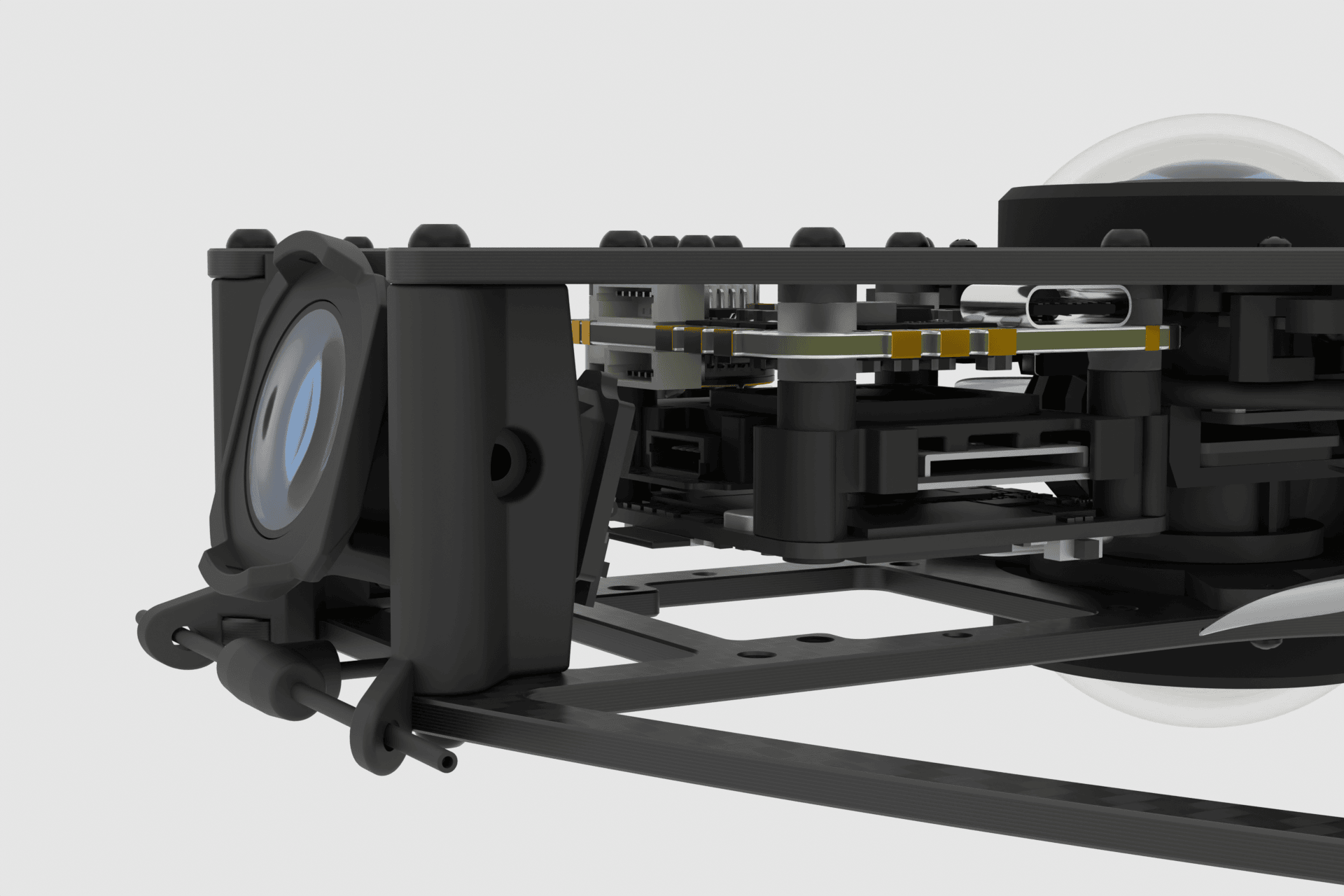

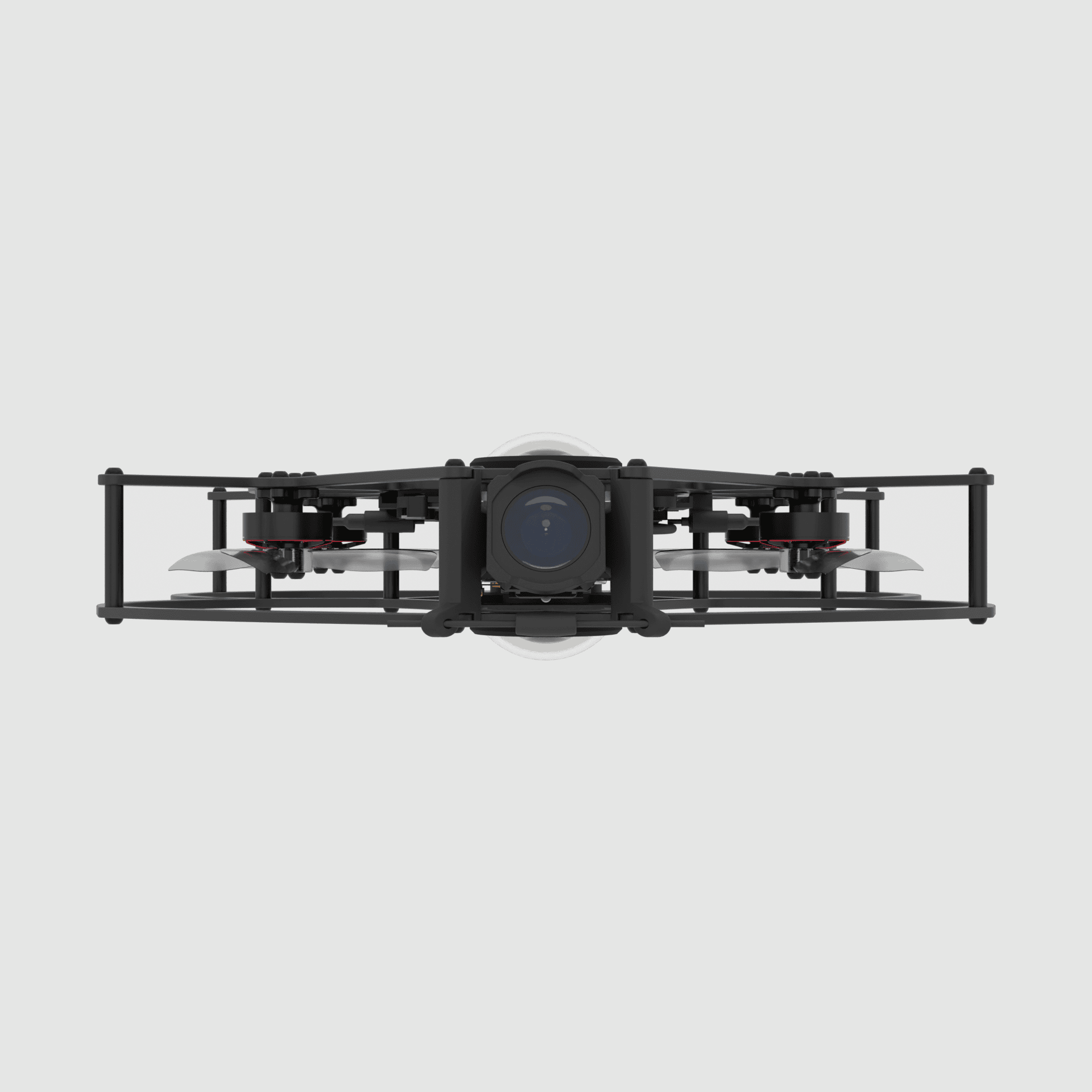

Naked DJI O4 Pro
DJI’s latest air unit on board for perfect reception and crystal-clear view in your Googles. Ready for regular FPV shots and live broadcasting with O4 Pro NDs. Supports camera angles from 0-30°
4-5min flight time
Easily slot-in Tattu 4S HV batteries with 550/650/750/850mAh capacity that performed best in our test (link). Get 4-5min cruising time with 650mAh under 250g

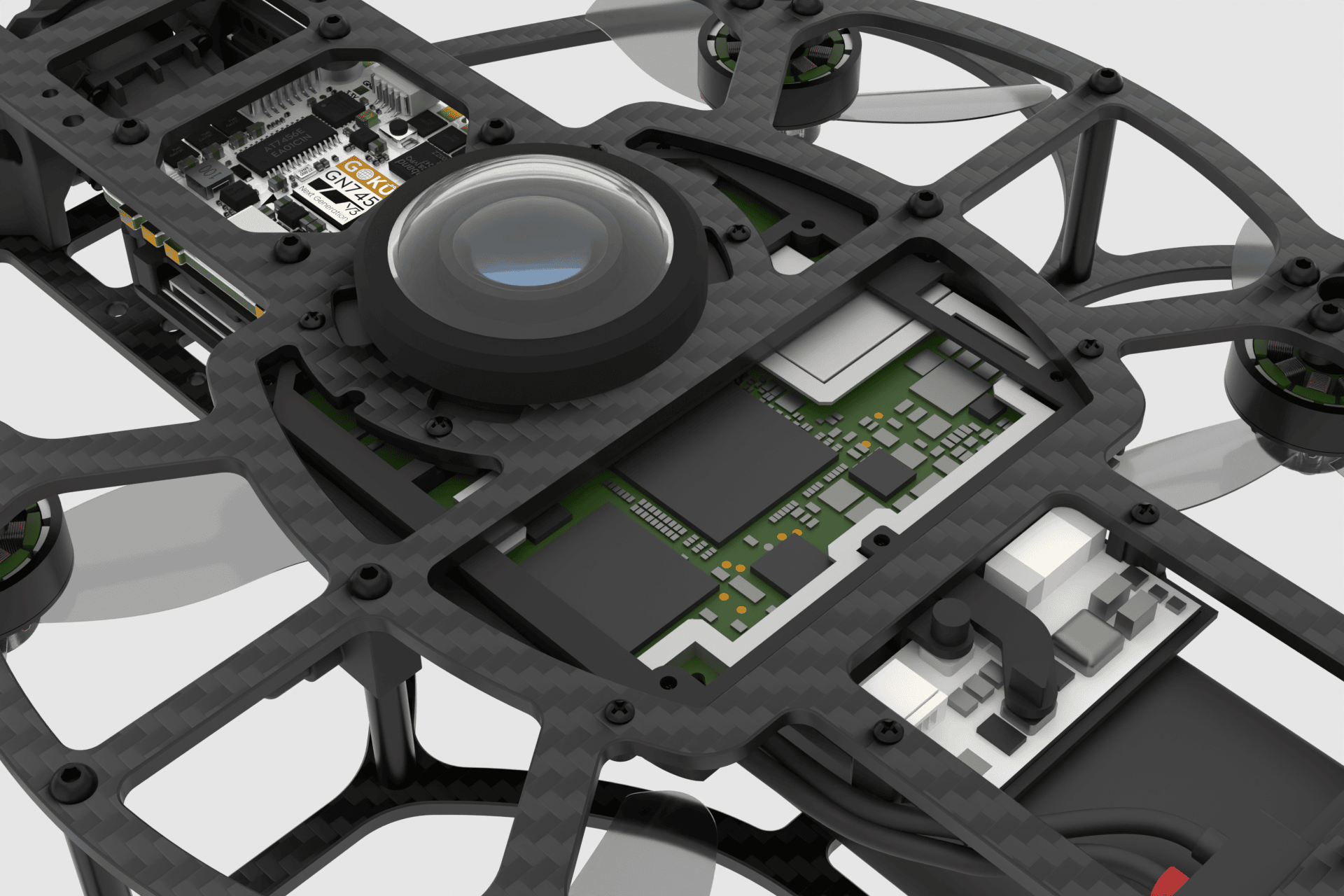

Low vibration frame and soft-mounted cameras
High-performance carbon frame optimised for low vibration, weight and easy repairs. Soft-mounted GoPro and O4 Pro for stable footage. All features are easily accessible including. SD cards, USB connectors and GoPro buttons.
Upgradable
Allows mounting of landing gear, GoPro screen, speaker or GPS – tailor your quad to your needs

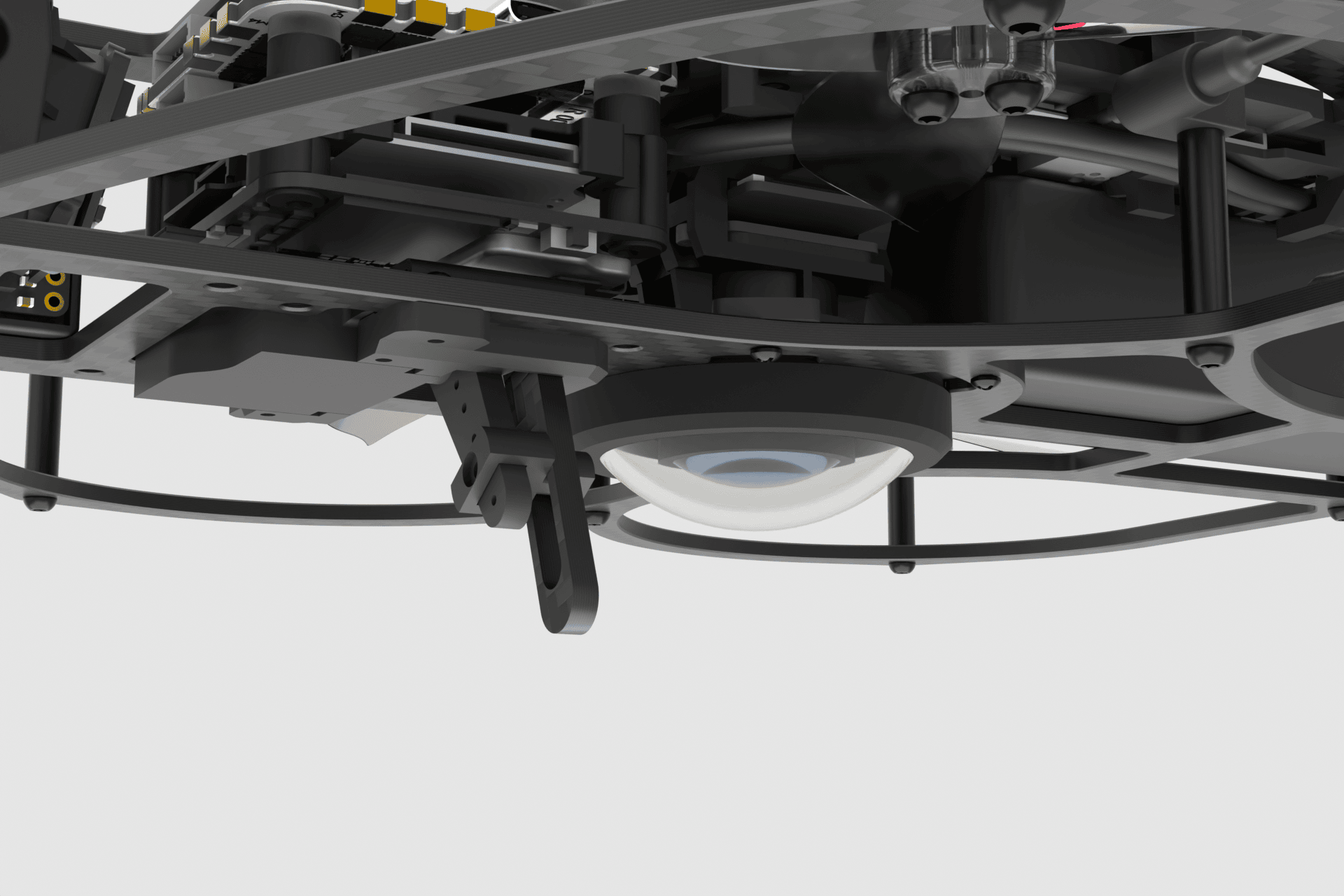

Landing gear upgrade
Not a fan of hand-catching your omnix, then integrate a servo landing gear with a carbon arm (+7g, optional)

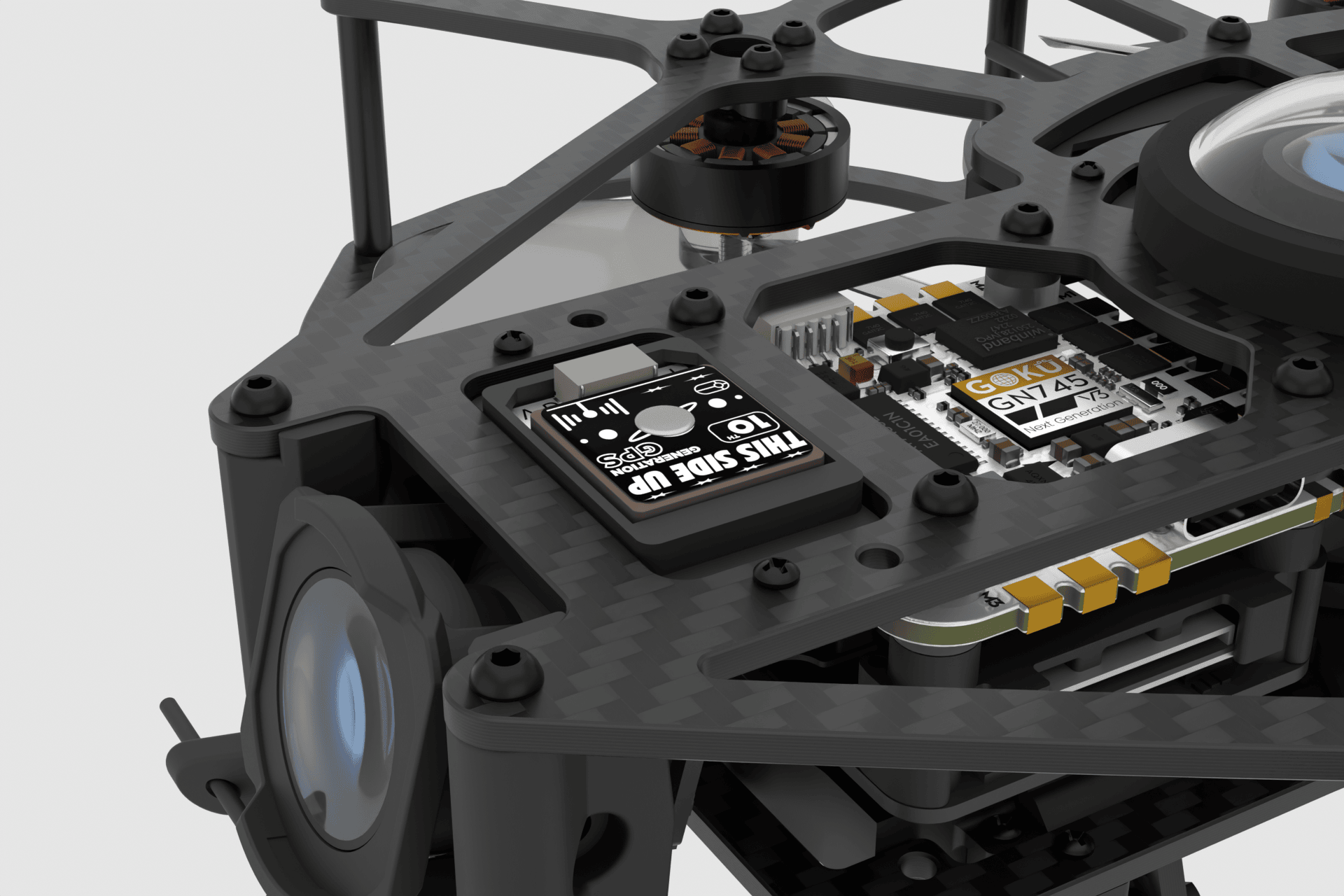

GPS upgrade
Don’t loose your omnix with an optional GPS module (+3g, optional)

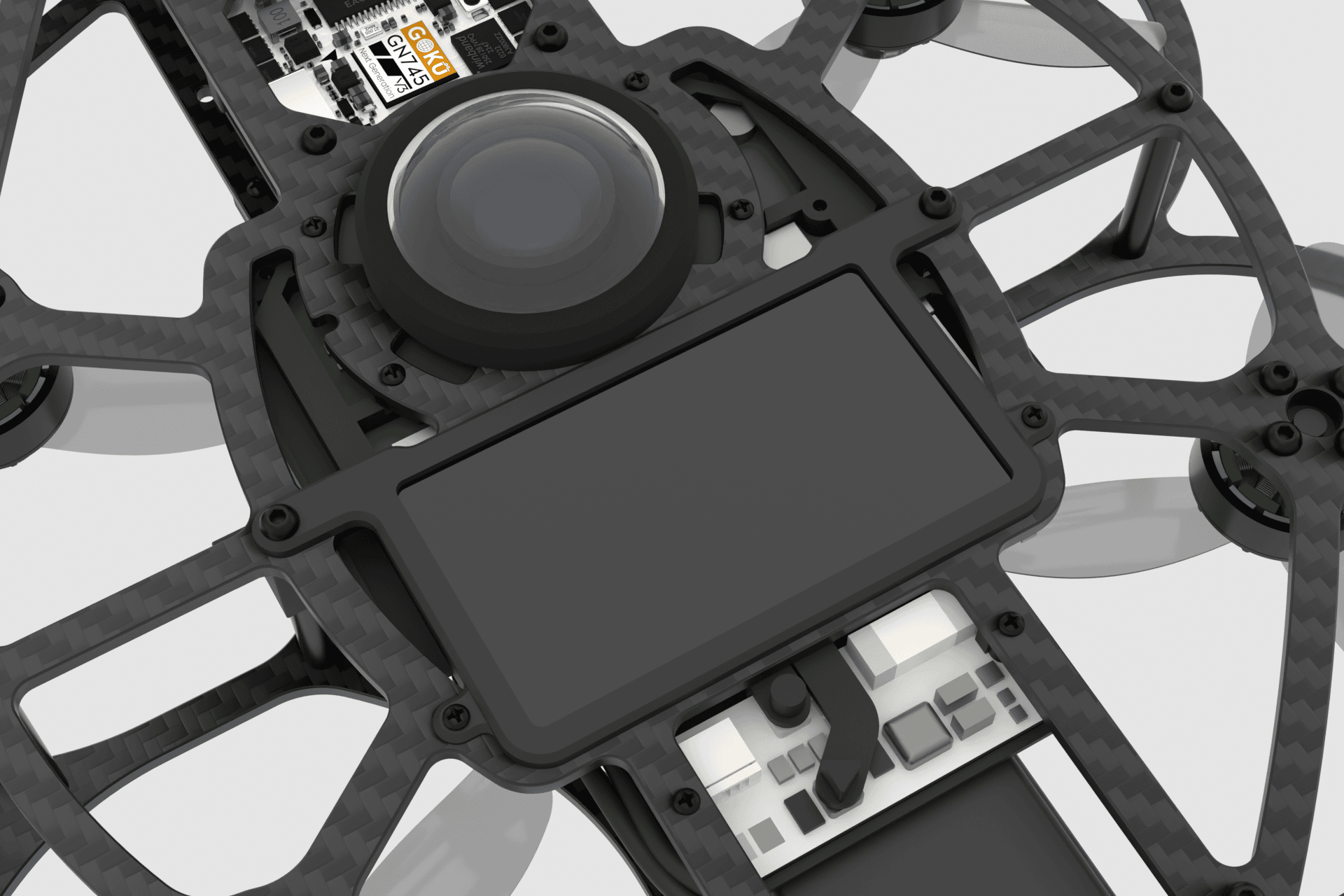

Touchscreen & Speaker upgrade
Easily configure your GoPro and check your footage on the road (+7g, optional)
